Agricultural Gearbox | UK-Spec Industrial Grade

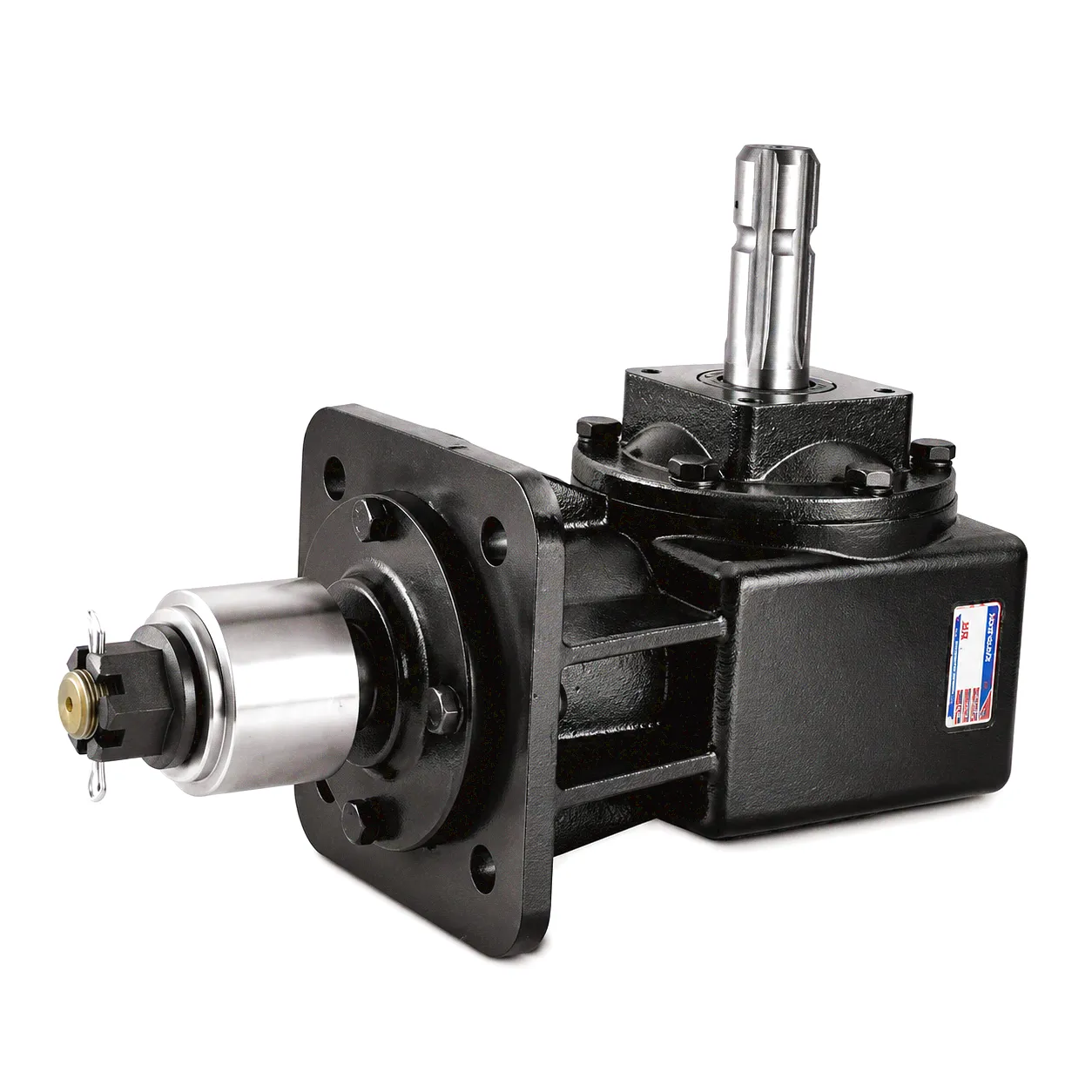

HC-RC33 Lawn Mower Series Gearbox
30HP Rated · 540 RPM Input · 1:1.93 / 1:1.69 / 1:1.47 Ratios · Proven in UK Arable & Harvesting Operations
The HC-RC33 agricultural gearbox is purpose-engineered for demanding field conditions across UK farms, contractors, and OEM machinery builders. Operating at a rated input of 540 rpm with a 1 3/8 Z6 splined input shaft and optic axis output, this gearbox bridges the gap between heavy-duty torque transmission and precision ratio control. Whether fitted to combine headers, rotary cutters, or high-throughput forage equipment, the HC-RC33 delivers repeatable performance season after season — a gearbox chosen by British machinery buyers who cannot afford downtime during harvest. Its three selectable gear ratios (1:1.93, 1:1.69, 1:1.47) give operators genuine flexibility to match ground conditions, crop density, and PTO output, making it equally at home on the flat Lincolnshire fenlands and the undulating arable ground of East Anglia. With a net weight of just 26 kg and a compact envelope, it installs easily on both new builds and retrofit applications without structural modification to the host machine.
Thông số kỹ thuật
All parameters verified against factory test records. Data applies to standard HC-RC33 configurations; custom ratios and shaft arrangements available on request.
| Tham số | Thông số kỹ thuật |
|---|---|
| Người mẫu | HC-RC33 |
| Tỷ số truyền | 1:1.93 / 1:1.69 / 1:1.47 |
| Teeth Configuration | 15/29 / 13/22 / 15/22 |
| Mô-đun | 4.0 / 5.0 / 5.08 |
| Công suất định mức | 30 HP / 30 HP / 30 HP |
| Tốc độ đầu vào định mức | 540 vòng/phút |

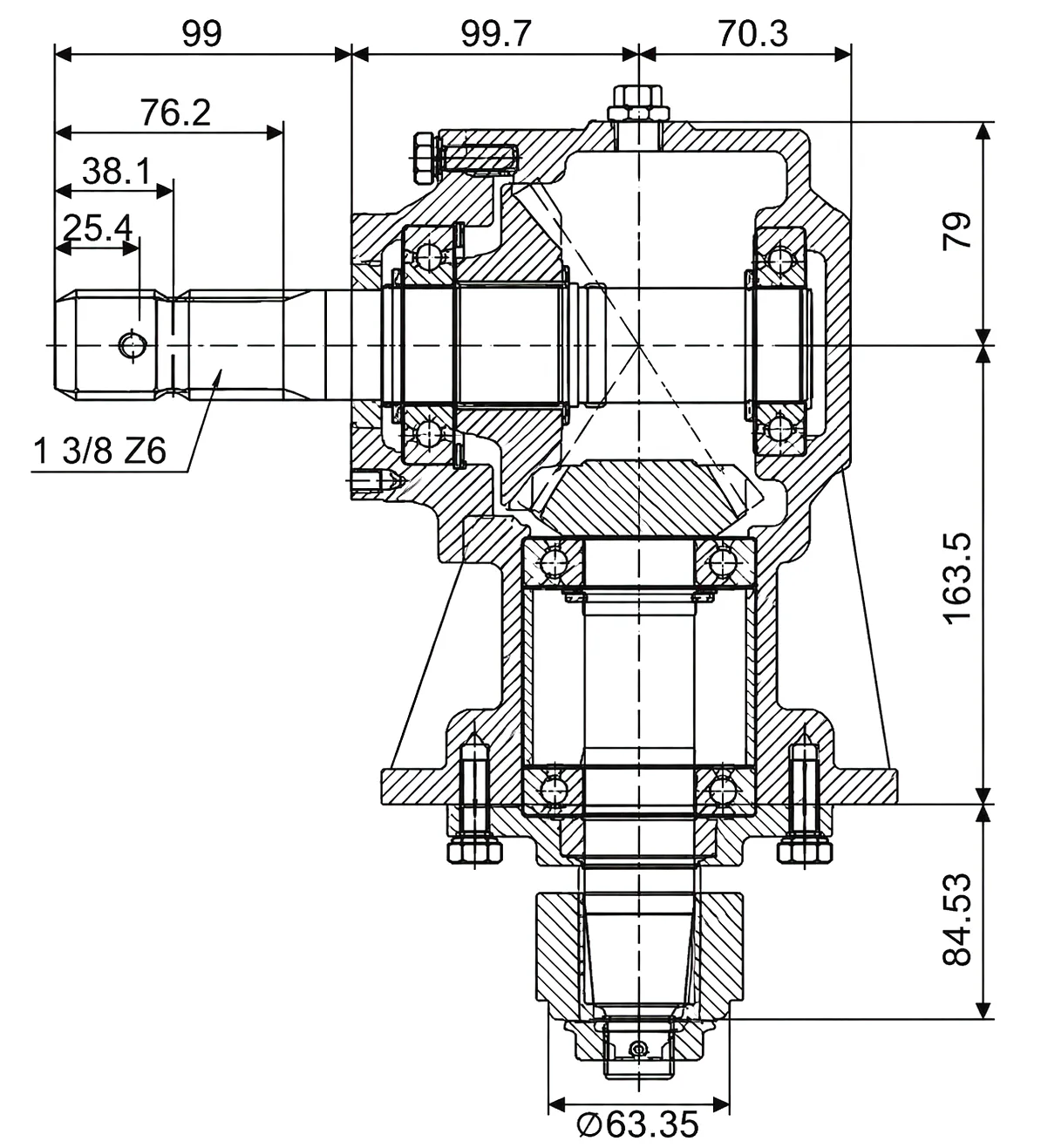

| Input / Output Description | 1 3/8 Z6 Splined / Optic Axis |
| Net Weight (N.W.) | 26 Kg |
Ratio Selection Guide
| Tỷ lệ | Răng | Mô-đun | Best For |
|---|---|---|---|
| 1:1.93 | 15/29 | 4.0 | Heavy crop loads, dense straw, high-resistance cutting |
| 1:1.69 | 13/22 | 5.0 | General harvest operations, mixed crop conditions |
| 1:1.47 | 15/22 | 5.08 | Higher output speeds, lighter crops, precision forage work |
How the HC-RC33 Works — Principle, Materials & Drive Train Integration
Operating Principle
The HC-RC33 uses a helical bevel gear set mounted within a sealed, ductile iron housing. Power enters via a 1 3/8 Z6 splined input shaft connected directly to the tractor PTO at 540 rpm. The helical tooth profile distributes load progressively across the full face width of each gear pair, reducing peak tooth stress by up to 30% compared to straight-cut equivalents. Output is delivered through an optic axis (in-line with the machine’s drive axis), enabling clean integration with rotary cutter decks, straw choppers, and header drives without the angular losses associated with bevel-only transmissions. The gear mesh itself operates in splash-lubricated oil — no grease nipples, no daily servicing requirement. Thermal load is managed by the casting geometry, with external ribs conducting heat away from the crown wheel zone and into the ambient airstream generated by machine travel.
Materials & Build Quality
Gear blanks are forged from 20CrMnTi alloy steel — a material chosen for its combination of high surface hardness after case-carburising (58–62 HRC) and a tough, ductile core that resists shock loading from stone strikes. Shaft material is 42CrMo4, straightened and centreless-ground to h6 tolerance. The housing is cast from GG25 grey iron and precision-bored on a CNC machining centre, ensuring bearing bore concentricity within 0.02 mm. Lip seals at both shaft exits are double-lipped, NBR compound, rated to 90 °C continuous — more than adequate for UK summer field temperatures. Fasteners are Grade 10.9, phosphate-treated. The entire assembly is sealed-filled with ISO VG 220 gear oil at factory, ready to install.
Field Applications
The HC-RC33 agricultural gearbox is fitted most commonly to offset disc mowers, header auger drives, straw spreaders, and mid-mount rotary cutters across the UK’s cereal and grassland sectors. At 1:1.93 it handles the brutal peak torque of a disc bed hitting compacted lodged wheat at harvest entry. Dropped to 1:1.47, the same unit accelerates the peripheral blade speed of a grass mower into the range required for a clean tip-to-tip cut on ryegrass silage. Independent contractors running fleet operations in the East Midlands, Yorkshire, and Scotland have adopted it as a like-for-like replacement for older OEM drives, drawn by its standard spline interface and availability of spare parts without minimum order quantities.
Why UK Farm Machinery Buyers Specify the HC-RC33
⚙
Three Ratio Options in One Unit
Avoid stocking multiple gearbox variants. One HC-RC33 covers the full range of crop and speed requirements across your machine fleet.
🔒
Sealed-for-Life Lubrication
Factory-filled with ISO VG 220 oil and sealed at both shafts. No daily greasing on-farm, and minimal in-season maintenance between major services.
📈
Case-Hardened Alloy Gears
20CrMnTi gear blanks carburised to 58–62 HRC surface hardness. Proven to outlast standard through-hardened alternatives in abrasive field conditions.
🔧
OEM-Compatible Spline Interface
1 3/8 Z6 input matches the NATO-standard PTO connection used across virtually all current UK tractor brands. No adaptors, no modification.
📦
Compact & Lightweight at 26 kg
Low mass reduces header ballast requirements and makes single-person installation on workshop stands straightforward — a real benefit for smaller dealerships and on-farm workshops.
🛠
Custom Configurations Available
Non-standard shaft diameters, housing colours, breather positions, and output flanges available with engineering consultation. No excessive minimum order.
Agricultural Gearbox Application Scenes
Agricultural gearboxes like the HC-RC33 are critical drivetrain components across a broad range of harvesting and crop processing platforms. Two application areas where engineered gearbox precision delivers measurable productivity gains are sugarcane harvesting — a sector that imposes some of the harshest combined shock-load and continuous-duty demands in all of field mechanisation:
Sugarcane Harvester — Elevator Drive
Elevator and slew drives on high-capacity sugarcane harvesters must handle continuous eccentric loading as cane billets transfer up the elevator chain at high throughput. Precision gear geometry is non-negotiable to prevent premature wear and chain skip.
Precision Elevator Slew Gearboxes for High-Capacity Sugarcane Harvesters →
Sugarcane Harvester — Base Cutter Drive
Base cutter gearboxes absorb the single hardest impact loads of any harvesting drive — the moment the rotating disc blade strikes the cane stalk at ground level. Tooth form and housing rigidity together determine how many seasons the unit survives before rebuild is required.
Base Cutter Gearbox for Sugarcane Harvesters: Precision Power for the Toughest Cut →
Manufacturing Capability & Custom Gearbox Services
Our production facility operates across a purpose-built workshop with a complete in-house machining capability — CNC turning centres, gear hobbers, gear grinders, carburising furnaces, and coordinate measurement machines (CMM). Every HC-RC33 unit is assembled in a clean-build cell, cold-tested under no-load conditions, and hot-tested at rated input speed before final painting and packing. The in-house metrology lab inspects every gear set to AGMA 10 or better quality class prior to assembly, ensuring the dimensional integrity that makes the difference between a two-season unit and one that lasts a decade in UK field conditions. Beyond the standard HC-RC33 configuration, our engineering team handles true custom gearbox projects: alternative housing materials (nodular iron, fabricated steel), modified shaft extensions, dual output arrangements, integrated clutch flanges, and bespoke gear ratios derived from the same tooth module range. OEM machinery builders are invited to send dimensional envelopes and load cycles for a no-obligation feasibility review. Prototype lead times run to six to ten weeks depending on complexity; serial production pricing scales efficiently from 50 units upward.
Customer Success: UK Agricultural Contractors Rely on HC-RC33
In 2024, a Lincolnshire-based arable contracting business running a 12-machine fleet of trailed disc mowers trialled the HC-RC33 as a replacement for their existing supplier’s gearbox on four units ahead of the silage season. The previous units had required bearing replacement at approximately 450 operating hours. The HC-RC33 units completed the full silage season — 620 hours each — without any maintenance intervention beyond visual oil checks. The business’s workshop foreman confirmed that the input spline fit was identical to the OEM parts they had been buying, and that the external bolt pattern allowed them to use their existing mounting sub-frames unchanged. Following that trial, all 12 machines in the fleet were upgraded to HC-RC33 at the next scheduled service interval.
“
We had been burning through gearboxes every 450 hours on our mower fleet. The HC-RC33 ran a full 620-hour silage season without a single fault. The spline fit is spot-on for our Fendt tractors and the price per unit is noticeably better than what we were paying before. We’ve now standardised across the entire 12-machine fleet.
James H., Contracting Director
Arable Contractor · Lincolnshire, UK
“
We build small batch rotary topper attachments for the UK groundscare market and needed a gearbox supplier who could offer custom shaft configurations without a 500-unit MOQ. The engineering team came back with a feasibility review within 48 hours, and our first prototype batch arrived correctly dimensioned. Lead time for serial units is now predictable and the quality is consistent batch to batch.
Sarah M., Head of Procurement
Groundscare Equipment OEM · Yorkshire, UK
“
As a farm machinery dealer in the Scottish Borders we stock a lot of wear parts, and the HC-RC33 is now our go-to recommendation for drive gearbox replacements on mower conditioners. The technical data sheet is clear, the product is exactly as described, and the delivery to our depot has been reliable even during the spring rush period. Our customers are not phoning back with warranty issues, which tells you everything.
David F., Parts Manager
Agricultural Machinery Dealer · Scottish Borders, UK
Supplying Agricultural Gearboxes Across the United Kingdom
Our B2B supply network covers all UK agricultural regions — East Anglia’s intensive arable belt, the mixed farming counties of the East Midlands and Yorkshire, the dairy-dominated landscapes of Cheshire, Lancashire, and south-west Scotland, and the more challenging terrain of Wales and the north-west. Gearboxes are shipped from our logistics hub directly to UK dealer warehouses, contracting firm workshops, and OEM assembly lines, with standard delivery windows of five to ten working days for stock items. For customers in England, Scotland, Wales, and Northern Ireland placing repeat orders, consignment stock arrangements can be discussed with our UK sales team. All documentation is provided in English, and invoicing is straightforward for UK VAT-registered businesses.
