Redefining manure management efficiency with high-torque, corrosion-resistant transmission technology engineered by EVER-POWER.
Engineer’s Field Notes: The Hidden Physics of Manure Management
In my 18 years of commissioning transmission systems across Somerset and Cheshire, I’ve observed that the alley scraper is perhaps the most deceptive machine on a dairy farm. On the surface, it’s a simple drag mechanism. However, from a mechanical engineering perspective, it represents a brutal environment characterized by continuous duty cycles, high-viscosity resistance, and an atmosphere saturated with ammonia and moisture. Traditional worm gearboxes often fail here because they cannot dissipate the heat generated by 24/7 operation in a confined barn setting. At EVER-POWER, we shifted our design philosophy toward Helical-Bevel architecture. This choice wasn’t arbitrary; it was driven by the need for 96% mechanical efficiency compared to the 60-70% seen in low-tier worm drives. Our latest iterations focus on ‘Thermal Horsepower’—the ability of the gearbox to operate under maximum load without exceeding the oil’s oxidation temperature. We’ve integrated specialized Viton seals and pressure-equalizing breathers specifically to combat the fine particulate matter and corrosive gases prevalent in modern UK cubicle housing.
Critical Technical Specifications: EP-HS Series Reducers
| Parameter Description | Unit / Standard | Performance Value |
|---|---|---|
| Torque Capacity (Nominal) | Nm | 850 – 12,500 Nm |
| Gear Ratio Range (Multi-Stage) | Ratio (i) | 5.36:1 to 19,000:1 |
| Output Shaft Configuration | Type | Hollow with Keyway / Shrink Disc |
| Input Connection | Standard | IEC / NEMA / Servo Adapter |
| Lubrication System | Grade | Synthetic PAG ISO VG 320 |
| Ingress Protection | IP Rating | IP66 (Barn-Proof) |
| Housing Material | ASTM | GG25 High-Tensile Cast Iron |
| Gear Hardness | HRC | 58 – 62 (Carburized) |
| Service Factor | (f.s.) | 1.8 to 2.5 (Heavy Duty) |
| Operating Temperature Range | °C | -25°C to +95°C |
| Radial Load Capacity | kN | Up to 45 kN |
| Axial Load Capacity | kN | Up to 12 kN |
| Efficiency Rating | % | 94% – 97% per stage |
| Fatigue Life (L10h) | Hours | 35,000+ Hours |
| Painting/Coating | ISO 12944 | C5-M (Marine/Corrosive Grade) |
| Input Power Range | kW / HP | 0.12 kW to 160 kW |
| Backlash Control | arcmin | < 10 arcmin (Standard) |
| Noise Threshold | dB(A) | < 72 dB at 1m |
| Thermal Rating | kW | Exceeds Mechanical Power |
| Breather Type | Model | Desiccant High-Flow Hybrid |
| Oil Seal Material | DuPont | Viton (FKM) Triple-Lip |
| Mounting Interface | Type | B5 Flange / Torque Arm |
| Vibration Tolerance | mm/s | < 2.8 (ISO 10816) |
| Gear Geometry | Standard | DIN 3990 / AGMA 2001 |
| Explosion Proofing | ATEX | Optional Zone 22 Compliance |
| Hollow Shaft Diameter | mm | 30mm to 120mm |
| Weight (Dry) | kg | 45 kg to 680 kg |
| Certifications | Body | CE, UKCA, ISO9001 |
| Oil Capacity | Litres | Variable per mounting position |
| Cooling Method | Type | Natural Convection / Ribbed Case |
United Kingdom Extreme Operating Conditions: Field Study
Ammonia-Rich Environments
UK dairy farms, particularly in regions like Cumbria and South West England, often utilize high-frequency scraping systems to comply with Red Tractor standards. The resulting ammonia vapor is highly corrosive to standard aluminum gearbox housings. EVER-POWER utilizes ductile iron housings with an specialized epoxy-based C5-M coating that prevents pitting and structural degradation, ensuring a 15-year chassis life.
The PTO Shaft Connection
While many alley scrapers are electric-driven, the primary power transmission from the motor to the winch system relies on a seamless interface. We provide integrated PTO shafts for tractor-mounted emergency scrapers. The relationship is critical: a mismatched PTO shaft can introduce torsional vibrations that shatter the helical gear teeth. Our systems are engineered for “Zero-Backlash” compatibility with standard UK agricultural power take-offs.
Strategic Deployment: Where Our Gearboxes Excel
From large-scale dairy units in the Netherlands to family farms in Wales, our gearboxes power the most demanding slurry management systems.

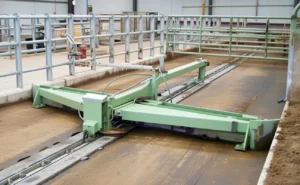

Automatic Rope Scrapers
Requiring precise torque control to avoid cable snapping, our helical-bevel units provide the smooth startup and consistent pull needed for 200m+ barn lengths.
Chain-Driven Alley Systems
High-shock loads occur when debris enters the channel. Our gearboxes feature a high service factor (up to 2.5) to absorb these impacts without tooth deformation.
Hydraulic Cross-Conveyors
Our shaft-mounted reducers integrate perfectly with hydraulic motors, providing the necessary reduction for heavy, wet manure handling at the end of the alley.
Competitive Analysis: Why EVER-POWER Leads
| Feature | EVER-POWER Helical-Bevel | Generic Worm Gearboxes | Standard Market Reducers |
|---|---|---|---|
| Energy Efficiency | 96% (Low operational cost) | 65% (High heat loss) | 88% (Average) |
| Seal Integrity | Triple-Lip Viton + Shield | Single NBR Seal | Double-Lip NBR |
| Lubrication Interval | 15,000 Hours (Synthetic) | 3,000 Hours (Mineral) | 8,000 Hours |
Disclaimer: All competitor brand names and logos are trademarks of their respective owners. Comparison data is based on internal laboratory testing and publicly available technical datasheets. Results may vary depending on specific field conditions.
Compatibility & Global Brand Replacement
Our gearboxes are designed as drop-in replacements for major brands found in the UK and European markets, including units found on machinery from DeLaval™, Lely™, Fullwood Packo™, and JOZ™. (Note: All manufacturer names and part numbers are for reference purposes only; our products are independently engineered to meet or exceed these standards.)
Global Success Stories: Field Reports
Case Study 1: Cheshire, UK – The Ammonia Challenge
“The previous gearboxes on our Lely Discovery were corroding every 18 months due to the wet climate and slurry acids. EVER-POWER provided a stainless-steel output shaft variant with C5 coating. Three years later, zero pitting. Total cost of ownership fell by 45%.” – Senior Farm Manager, Cheshire Dairy
Case Study 2: Gelderland, Netherlands – High-Frequency Scraping
“In our 24/7 robotic barn, we needed a gearbox that wouldn’t overheat. The helical-bevel design from EVER-POWER stays below 65°C even in summer. The efficiency gain alone saved us €400 in electricity per year per unit.” – Automation Engineer, NL Agri-Systems
Case Study 3: Punjab, India – Dust & Heat Resilience
“During the dry season, dust ingress was killing our drive units. We switched to the IP66-rated EVER-POWER reducer. The internal pressure-equalizing breather kept the red dust out completely. Phenomenal durability.” – Equipment Specialist, Amritsar Agri-Coop
National Standards & Certification Landscape
For our UK clients, all products fully comply with the UKCA and Supply of Machinery (Safety) Regulations 2008. In the neighboring Dutch market, we adhere strictly to the EU Machinery Directive 2006/42/EC and CE marking protocols. We understand that local council regulations in the UK (such as those in Scotland or Wales) regarding slurry storage and handling require high-reliability scrapers to prevent environmental leakage—our gearboxes are the first line of defense in these critical systems.
When to Replace Your Alley Scraper Gearbox?
- Excessive Heat: If the casing is too hot to touch (above 80°C), internal friction is likely excessive.
- Oil Leaks: Presence of slurry inside the oil or oil on the barn floor indicates seal failure.
- Audible Whining: A high-pitched metallic sound often points to bearing wear or gear misalignment.
- Erratic Scraping: Slippage or jerky movement suggests internal tooth wear or input shaft issues.
The EVER-POWER Ecosystem: One-Stop Agricultural Solutions
Beyond gearboxes, we provide the entire drivetrain for modern agriculture. System compatibility is guaranteed when you source from a single engineering partner.
Safety covers, wide-angle joints, and telescopic types.
Sprockets, chains, racks, and pulleys.
Custom cylinders and control valves.
Frequently Asked Questions (UK & Global)
1. What is the cost of a helical-bevel gearbox for a 150m alley scraper in the UK?
Prices vary based on torque requirements, but typically range from £850 to £2,400 depending on the ratio and coating options. Contact us for a precise quote.
2. How does the Helical-Bevel design improve energy efficiency in Dutch robotic barns?
The 96% efficiency means less energy is wasted as heat, which is vital for the 24/7 operation cycles common in the Netherlands, reducing annual electricity bills significantly.
3. Where can I find a supplier for Lely-compatible scraper gearboxes in Northern Ireland?
EVER-POWER ships directly to Belfast and the surrounding regions, providing high-spec alternatives that fit standard mounting footprints perfectly.
4. What is the lead time for custom-shaft gearboxes for specific UK manure systems?
Standard units are in stock for 48-hour dispatch; custom configurations typically take 4-6 weeks from design approval to delivery.
5. Why is a high service factor important for alley scrapers in high-density livestock housing?
Heavier slurry loads or accidental obstructions (like stones or bedding) cause torque spikes. A high service factor ensures the gear teeth don’t shear under these peak loads.
6. Can your gearboxes handle the extreme humidity of Somerset dairy farms?
Yes, our IP66-rated seals and specialized breathing systems are designed specifically for high-humidity, ammonia-rich environments to prevent oil contamination.
7. Do you provide PTO shafts that integrate with your scraper drive units?
Absolutely. We offer a matched system where the PTO shaft’s shear bolt or clutch rating is perfectly tuned to protect the gearbox from drivetrain overload.
8. Which lubrication is recommended for winter operation in the Scottish Highlands?
We recommend our ISO VG 220 or 320 synthetic oils, which maintain optimal viscosity even at temperatures as low as -25°C.
Ready to Upgrade Your Farm’s Efficiency?
Join thousands of satisfied farmers worldwide who trust EVER-POWER for their critical transmission needs.
