Navigating the complex hydro-mechanics of deep-mud paddy fields requires more than just engine power; it demands a transmission system capable of translating high rotational speed into earth-moving torque. As specialists in agricultural drive trains with nearly two decades of metallurgical and kinematic experience, we understand that the Rear Axle Case (Rear Reduction Gearbox) is the critical junction where performance meets durability.

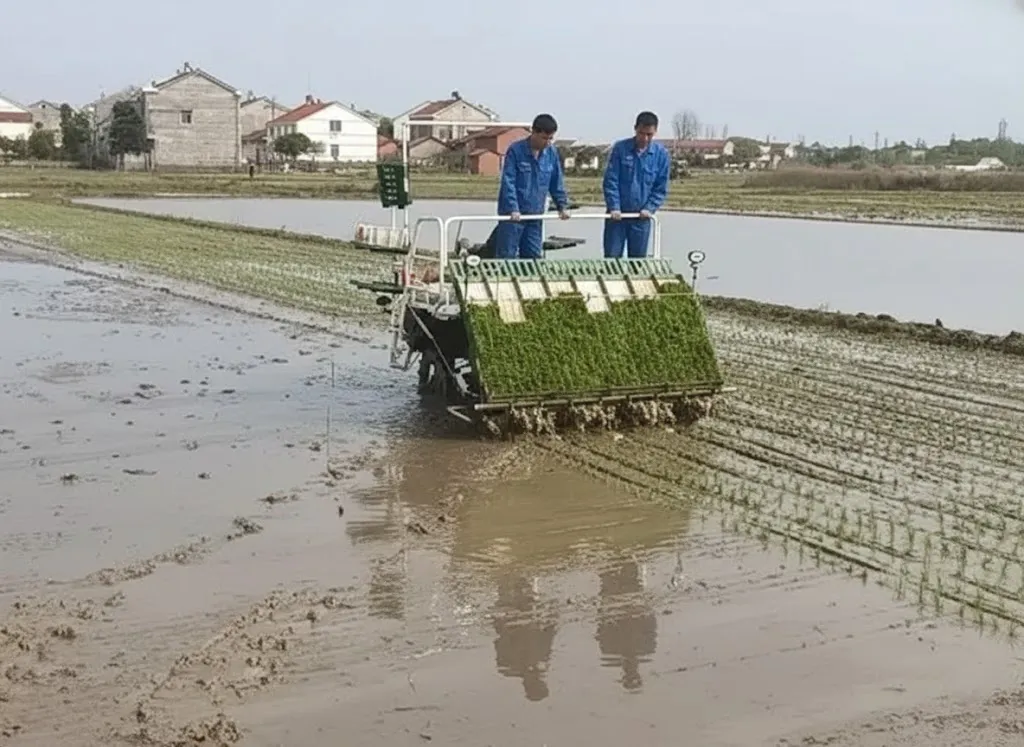

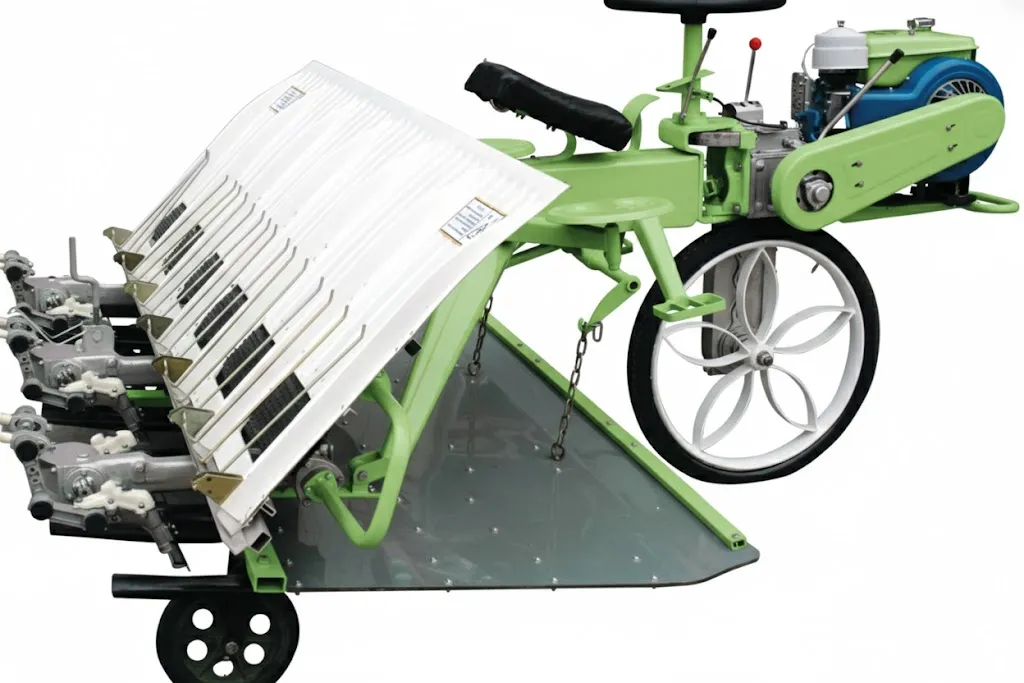

The modern agricultural landscape, particularly in specialized wetland farming seen across specialized sectors in the United Kingdom and Europe, demands machinery that withstands amphibious conditions. The Rear Axle Case serves a dual purpose: it acts as the structural foundation supporting the transplanter’s weight and fertilizer load, while simultaneously functioning as the final reduction unit. This component must execute a precise “portal axle” function, elevating the chassis to prevent crop damage while delivering massive torque to the wheels submerged in high-viscosity mud. Our designs prioritize hermetic sealing and load-bearing integrity, ensuring your machinery operates without the risk of water ingress or gear fatigue.
Engineering the “Portal” Concept: Reduction and Clearance
The fundamental challenge in designing a Rear Reduction Gearbox for transplanters lies in the conflicting need for a low center of gravity for stability and high ground clearance to protect the seedlings. We resolve this through a specialized portal axle configuration. Unlike standard straight axles, our Rear Axle Case utilizes a vertical gear train arrangement. This allows the input shaft from the central transmission to enter at a higher point, while the output shaft driving the wheel is positioned significantly lower.
This vertical offset is not merely structural; it is the stage for the Final Reduction. By utilizing a high-precision carburized spur gear set within this drop box, we achieve a reduction ratio typically between 5:1 and 8:1 directly at the wheel hub. This drastic reduction multiplies the torque exponentially right where it is needed—at the mud-tire interface. Consequently, the central driveline components can remain lighter and spin faster, reducing the overall vehicle mass. The casing itself is cast from high-grade nodular cast iron (QT450-10) or high-pressure die-cast aluminum alloys, depending on the specific weight requirements of the 6-row or 8-row machine configurations. This choice of material offers exceptional vibration damping properties, crucial for minimizing operator fatigue during long shifts in the field.
Furthermore, the internal geometry of the case is optimized for oil splashing lubrication. Even at low speeds, the gear rotation creates a directed oil mist that coats the upper bearings, ensuring heat dissipation. This passive cooling capability is vital when the lower half of the gearbox is submerged in warm, stagnant water, which effectively acts as an insulator preventing external cooling.
Why Our Rear Axle Cases Outperform Standard Replacements
Triple-Barrier Sealing System
The primary killer of paddy machinery is the abrasive mix of water and silica-rich mud. Our Rear Axle Cases feature a proprietary “Mud-Block” sealing architecture. We utilize a cassette-style oil seal combined with a mechanical labyrinth shield. This prevents grass and twine from wrapping around the shaft and damaging the seal lips, ensuring zero water ingress even after 500 hours of submerged operation.
Precision Gear Metallurgy
Gears inside our cases are not just cut; they are shaved and heat-treated. We use 20CrMnTi alloy steel, subjected to carbon-nitriding to achieve a surface hardness of HRC 58-62 while maintaining a tough core. This specific metallurgic profile resists the shock loads encountered when the wheels strike buried rocks or logs in the field.
Modular Mounting Interface
Understanding the diversity of the UK and European aftermarket, our cases are designed with modular mounting flanges. This allows for seamless retrofitting onto various chassis types (Kubota, Yanmar, or Iseki compatible designs) without the need for extensive welding or modification. We provide the adaptability your workshop needs.
Technical Performance Data
Detailed specifications for our standard 6-Row Transplanter Rear Reduction Gearbox series.
| Parameter | Specification Standard | Advanced Option |
|---|---|---|
| Bahan Kasus | ADC12 Aluminum Alloy | Besi Cor Nodular QT450-10 |
| Rasio Pengurangan | 1:5.2 | Customizable (up to 1:8) |
| Torsi Keluaran Terukur | 350 Nm | 550 Nm |
| Peringkat Penyegelan | IP67 (Submersible) | IP68 (Double Labyrinth) |
| Kecepatan Masukan (RPM) | Max 800 RPM | Max 1200 RPM |
Optimizing Power Delivery: The Critical Role of PTO Shafts
In the context of the UK agricultural machinery market, identifying the correct synergy between the power take-off (PTO) and the rear axle is paramount. While the rear axle case handles the final torque multiplication, the delivery of that power from the engine or central transmission relies entirely on high-quality PTO shafts. A mismatch here—such as using a shaft with inadequate torsional rigidity or incorrect spline sizing—results in “driveline shudder,” which can shatter the input gears of the rear axle case instantly.
We supply comprehensive transmission solutions. When you source your rear reduction kotak roda gigi from us, we strongly recommend integrating our matched agricultural PTO shafts. Our shafts are balanced dynamically to reduce vibration, protecting the input bearings of the rear axle case. Whether you are repairing machinery in Norfolk, maintaining fleet equipment in Lincolnshire, or distributing parts across the Midlands, our integrated drive solutions ensure that the power generated by the engine is transferred efficiently to the mud, minimizing energy loss. We offer standard spline profiles (1-3/8″ Z6) and wide-angle joints tailored for the tight turning circles often required in smaller European fields.
Case Study: Solving Axle Failures in The Fens
Klien: Precision Ag Services Ltd.
Lokasi: Cambridgeshire, Britania Raya
Tantangan: High failure rate of OEM rear axle cases on imported 6-row transplanters working in heavy clay soils.
The Issue: The local soil conditions in the Fenlands are significantly denser and more abrasive than the paddy fields for which standard Asian-spec machines were originally designed. The client was experiencing seal failures every 200 hours, leading to water contamination and catastrophic gear seizures.
Solusi Kami: We engineered a custom batch of Rear Axle Cases featuring reinforced QT450 iron housings (replacing the standard aluminum) and upgraded the seals to our “Type-K” triple-lip design with an external stainless steel mud shield.
Hasilnya: After two full planting seasons and over 1,200 hours of operation, the client reported zero failures. The maintenance interval for oil changes was extended from 200 hours to 500 hours, significantly reducing downtime and labor costs for their rental fleet. This reliability has allowed Precision Ag Services to confidently expand their warranty offerings to UK farmers.
★★★★★
“Finding compatible parts for older transplanters in the UK is a nightmare. Ever-Power’s rear axle cases fit perfectly, and the casting quality is visibly superior to the original.”
– Arthur H., Machinery Dealer, Suffolk
★★★★★
“The technical team helped us calculate the correct reduction ratio for our modified wetland buggy. The gearbox arrived well-packaged and has performed flawlessly.”
– Liam P., Ag Engineer, Yorkshire
★★★★★
“Excellent service. We ordered the matching PTO shafts with the gearboxes, and the integration was smooth. Highly recommended for B2B sourcing.”
– Sarah Jenkins, Procurement Manager, Bristol
Pertanyaan yang Sering Diajukan
How often should I change the oil in the rear reduction gearbox for wetland operations?
Can you ship rear axle cases directly to machinery dealers in the United Kingdom?
What is the price difference between aluminum and cast iron rear axle cases?
Do you supply the compatible PTO shafts needed for the rear axle installation?
Which brands of rice transplanters are your rear reduction gearboxes compatible with?
