Why UK Grain Handlers Choose the L Series 40HP Gearbox
For farm operations across Yorkshire, East Anglia, and the Scottish Lowlands, selecting the right grain storage gearbox is one of the most consequential decisions a machinery manager will make. The L Series grain storage gearbox from agriculturalgearboxes.top has built a reputation among UK agricultural businesses for combining robust mechanical engineering with straightforward serviceability — two qualities that matter enormously when harvest schedules are tight and downtime is expensive.
At 40HP and a 1.5:1 gear ratio, this unit is purpose-built for the demanding loads generated by large-scale cereal and oilseed storage. The housing is cast from HT250 grey iron — a material widely respected in industrial gearbox manufacture for its damping characteristics and compressive strength — while the gear shaft is machined from 20CrMnTi case-hardened alloy steel. Together, these material choices produce a gearbox that handles continuous cyclic loading without the micro-fatigue cracking that shortens the life of lesser components. Weighing just 21kg, it strikes an uncommon balance between structural mass and practical handling during installation or swap-out maintenance.
EP-5490 Technical Specifications
| Parameter | Spesifikasi | Note |
|---|---|---|
| Power Rating | 40 HP | Continuous duty rated |
| Nisbah Gear | 1.5 : 1 | Torque-optimised reduction |
| Bahan Perumahan | Besi Tuang HT250 | High compressive strength |
| Bahan Aci Gear | Keluli Aloi 20CrMnTi | Case-hardened, wear-resistant |
| Berat | 21 kg | Compact for capacity class |
| Warna | Boleh disesuaikan | RAL codes available on request |
| Aplikasi Utama | Sistem Penyimpanan Bijirin | Augers, elevators, conveyors |
| Product Code | EP-5490 | L Series designation |

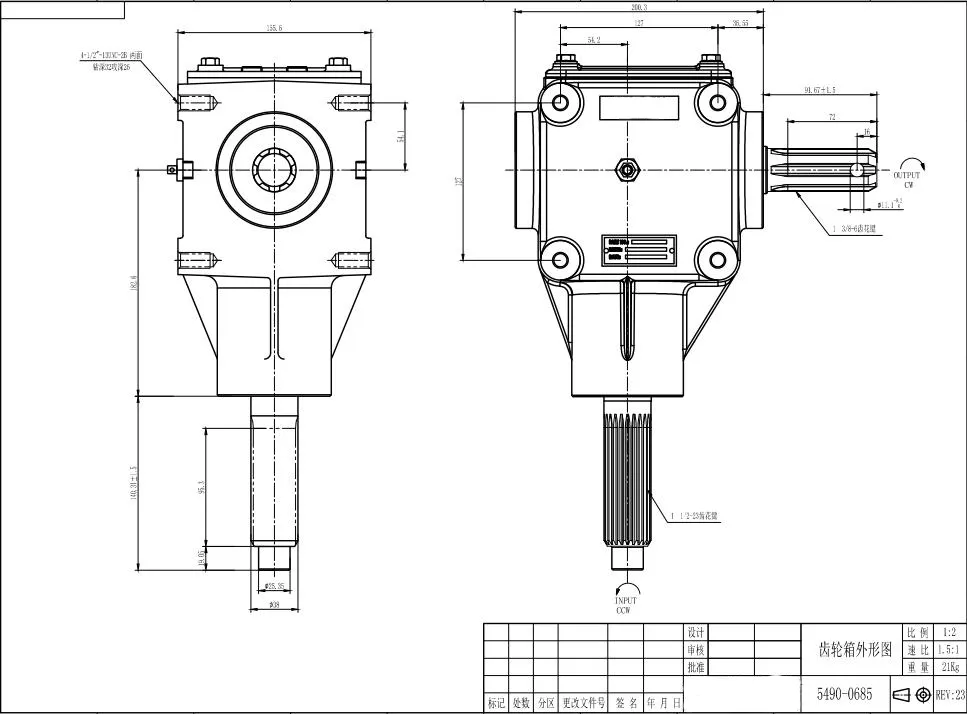

EP-5490 Dimensional Drawing — contact us for full CAD files
How the L Series Grain Storage Gearbox Works
Understanding the working principle helps procurement engineers specify the right unit and maintenance teams service it correctly. An electric motor — typically three-phase AC in UK agricultural installations — drives the input shaft, transferring rotational energy into the gearbox casing. The internal gear train then performs speed reduction: at a 1.5:1 ratio, for every 1.5 revolutions of the input shaft, the output shaft completes one full revolution. The physics of this reduction means that output torque increases proportionally, giving the gearbox its ability to drive heavily loaded conveyors and auger screws without stalling under grain weight spikes during filling.
The 20CrMnTi gear teeth are precision-ground and case-hardened to a depth that withstands the Hertzian contact stresses generated at high torque. A dedicated lubrication circuit — using gear oil appropriate for ambient UK temperatures, typically ranging from -5°C in winter storage environments to 35°C during summer harvests — coats bearing surfaces continuously. Heat generated during prolonged operation dissipates through the finned HT250 iron housing, which acts as a passive heat sink, eliminating the need for external cooling fans in most standard grain storage applications.
Sealing is arranged around the output and input shaft exits to prevent grain dust — a pervasive and abrasive contaminant in storage environments — from infiltrating bearing races. This detail alone significantly extends bearing life compared to open or inadequately sealed gearbox designs. The modular mounting interface accepts foot-mount and flange-mount configurations, making integration straightforward whether retrofitting an existing silo system or commissioning a new installation.
Performance Advantages for UK Agricultural Operations
High-Torque Output
The 1.5:1 ratio delivers amplified torque to augers and conveyors, handling the unpredictable weight surges that occur when bulk grain is loaded rapidly — common in UK harvest conditions.
Dust-Resistant Sealing
Shaft seals rated for grain dust ingress keep bearing chambers clean, extending service intervals substantially versus standard industrial gearboxes not designed for agri-storage environments.
Long Service Life
HT250 iron housing combined with hardened 20CrMnTi gear shafts means this gearbox is built to outlast the equipment it drives, reducing total cost of ownership for farm and co-operative operators.
Simple Maintenance
Accessible lubrication ports and a straightforward internal layout mean routine maintenance can be completed by an in-house engineer, avoiding costly call-out charges during busy harvest windows.
Operational Safety
Consistent, smooth power delivery eliminates the torque spikes and abrupt stops that cause conveyor jams, spills, or mechanical stress on adjacent drive components — keeping your facility and workforce safer.
Broad Compatibility
Works as a direct replacement for Comer Industries, Bonfiglioli, and John Deere equivalents, allowing UK operators to modernise storage equipment without full system redesigns or civil works.
Application Environments in UK Grain Storage
The L Series grain storage gearbox is deployed at multiple points within the grain handling chain. In grain elevator towers — particularly common at the larger co-operative storage sites found across Lincolnshire, Norfolk, and Cambridgeshire — it powers bucket elevator drives that lift harvested cereal from ground-level intake pits to the tops of flat-bottom or hopper-bottom bins. The torque characteristics of the 40HP unit are well-matched to the start-up loads generated by fully loaded bucket chains.
On flat-floor and drive-over storage buildings, chain drag conveyors and belt conveyors rely on the gearbox to maintain a consistent belt speed regardless of load variations. The unit drives auger screws used to distribute grain across the floor surface, ensuring even depth and preventing hot-spots caused by uneven packing. In reception pits at commercial maltings and flour mills, grain pump systems — whether pneumatic transfer or mechanical — draw their drive from gearboxes of this class.
| Permohonan | Function | UK Sector |
|---|---|---|
| Lif Bijirin | Vertical grain lifting | Co-operative stores, maltings |
| Belt Conveyors | Horizontal grain transport | Arable farms, flour mills |
| Flat-Floor Augers | Distribution within silos | On-farm flat-floor stores |
| Grain Pumps | Pneumatic / mechanical transfer | Port terminals, commercial mills |
| Blending Systems | Mixer and blender drives | Animal feed manufacturers |
| Loading/Unloading | Lorry & railcar fill points | Export terminals, merchants |
Customer Success: Grain Storage Operators Who Trust Our Gearboxes
Real results from working agricultural businesses
Case Study — Lincolnshire, UK
Arable Farm Co-operative Reduces Conveyor Downtime by 60%
A 14-member grain co-operative operating a 25,000-tonne flat-floor complex near Sleaford replaced four ageing European-brand gearboxes on their intake belt conveyors with the L Series EP-5490 units ahead of the 2023 harvest. The existing gearboxes had required mid-harvest interventions in two of the previous three years, leading to costly contractor call-outs and grain quality concerns from extended dwell times.
After one full harvest season and a follow-on winter barley campaign, the co-operative’s machinery coordinator reported zero unplanned stoppages attributable to the gearboxes, a marked improvement over their previous equipment. Routine servicing was completed in-house using the accessible lubrication ports, and the co-operative has since placed an order for two additional units on their grain elevator drive systems.
★★★★★
“We’ve been through three different gearbox suppliers over the past decade. The L Series is the first one that hasn’t needed touching between seasons. Exactly what you want when the combines are rolling.”
James Hartley
Farm Manager, East Yorkshire Arable Ltd
★★★★★
“Ordered five units with customised mounting flanges. Lead time was competitive and the technical team handled the dimension queries before dispatch. Installation fit first time on our auger drives.”
Sarah Drummond
Procurement Manager, Scottish Grain Merchants Group, Aberdeenshire
★★★★★
“Price was a key factor — we’re a smaller commercial maltings and margins are tight. The EP-5490 came in 30% below what we were quoted from European suppliers, with no compromise in the spec that we could find.”
Phil Connors
Engineering Director, Midlands Craft Maltings, Nottinghamshire
Ready to Specify the Right Grain Storage Gearbox for Your UK Operation?
Send us your application data — grain type, throughput, conveyor length, motor size — and our engineers will recommend the correct specification and provide a competitive price within 24 hours.
