Description
In the high-pressure world of modern cereal and rice harvesting across the United Kingdom — from the broad flatlands of Lincolnshire and Cambridgeshire to the productive valleys of South Yorkshire — there is no room for mechanical compromise when the weather window opens. The grain unloading gearbox is the single component that determines whether harvested grain moves smoothly and rapidly from the combine tank into trailers, or whether a breakdown forces costly, crop-threatening delays. At agriculturalgearboxes.top, our engineering team brings over 18 years of concentrated experience in agricultural power transmission to every agricultural grain unloading gearbox we design and manufacture. Whether you are a large arable estate, an agricultural machinery dealer covering the East Midlands, or an OEM builder producing specialist combine attachments, we have the technical depth and production capability to support your operation with a gearbox built to perform — season after season, without apology.
Product Specifications
| Parameter | Specification |
|---|---|

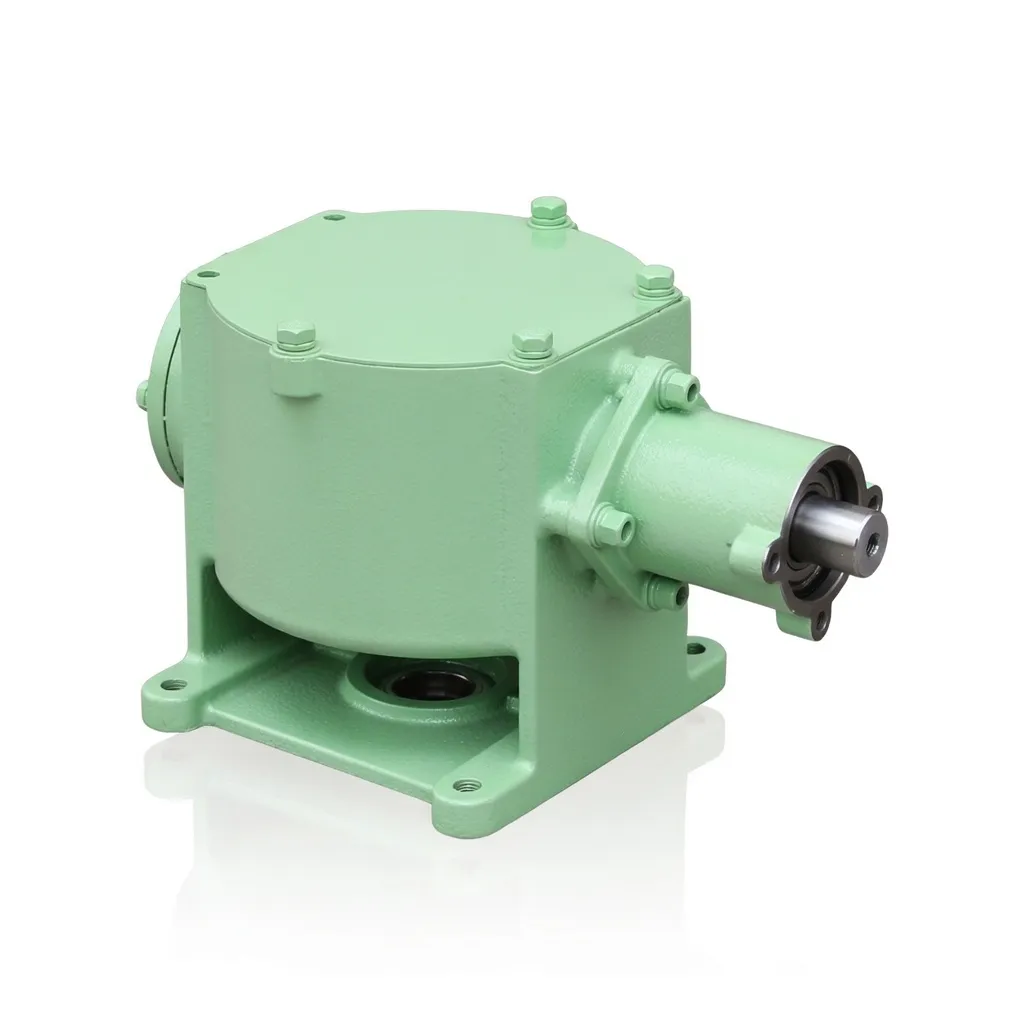

| Product Name | Grain Unloading Gearbox |
| Model Number | EP01305060022 |
| Housing Material | ZL107-J-T6 Aluminium Alloy |
| Gear Shaft Material | 20CrMnTi Case-Hardened Steel (HRC 58–62) |
| Application | Rice Harvester / Combine Harvester |
| Gear Types | Spur, Helical, Bevel (configurable) |
| Sealing Rating | IP65 Dust and Moisture Resistant |
| Colour | Customisable |
| Compatible Platforms | John Deere, CLAAS, New Holland, Case IH, Kubota, Lovol, Zoomlion, Krone & more |
| Customisation | Yes — gear ratio, shaft config, flange pattern, surface coating |
| Supply Region | United Kingdom (England, Scotland, Wales, Northern Ireland) + Global Export |
Why Our Grain Unloading Gearbox Outperforms Standard Replacements
UK arable and rice harvesting contractors face a specific set of challenges that make component quality non-negotiable. Tight harvest windows — often measured in days rather than weeks — mean that the agricultural grain unloading gearbox fitted to your combine must perform without hesitation across extended daily operating cycles, in muddy fields and under significant dust load. Our product addresses each of these pressures with engineering precision rather than marketing claims. Below are the performance advantages that our customers in England, Scotland, and Wales highlight most consistently after their first season of use.
Sustained High-Torque Output
Precision-cut helical and bevel gears maintain consistent power delivery under the continuous high-torque demands of long harvesting shifts. Whether operating a John Deere S-Series across Lincolnshire wheat or a CLAAS LEXION through Yorkshire barley, the grain unloading gearbox delivers smooth, slip-free output even during 12-hour operating days — a critical factor when your harvest income depends entirely on uninterrupted throughput.
IP65 All-Weather Sealing
The British harvest season is notoriously unpredictable. Morning dew, sudden rain showers, and the dense chaff dust generated during continuous threshing create a corrosive environment for any mechanical system. Our multi-layer nitrile rubber seals and precision-machined gaskets deliver IP65 dust and moisture resistance, preserving internal lubricant quality and protecting bearing surfaces from the contamination that causes most agricultural gearbox failures in UK field conditions.
Lower Grain Breakage Rate
The controlled, shock-dampened output profile of this agricultural grain unloading gearbox reduces mechanical impulse loads on auger and elevator systems. For UK grain merchants operating on tight moisture and quality specifications, less grain cracking at the unloading stage means fewer rejections at the intake and a stronger net return per harvested tonne — an advantage that compounds across an entire season’s production.
Multi-Crop Versatility
While specifically engineered for rice harvesting, this grain unloading gearbox handles wheat, barley, oilseed rape, maize, and oats across most standard configurations. Adjustable gear ratio settings and optional torque limiter features allow UK arable farmers running diverse crop rotations to adapt the same gearbox to autumn and spring harvest campaigns without needing separate units for each crop type.
How the Grain Unloading Gearbox Works — Principle & Materials
Power from the combine harvester’s engine enters the grain unloading gearbox via the input shaft, which is coupled directly to the PTO or belt-drive system. Inside the housing, the input shaft engages a staged reduction gear set — typically a helical primary stage followed by a bevel output stage — that transforms high-speed, low-torque engine rotation into the controlled, high-torque output required to drive the unloading auger or elevator conveyor. The output shaft then delivers this converted energy to the grain handling mechanism, lifting harvested rice or cereal grain from the combine tank and propelling it into the waiting trailer or bulk container with minimal mechanical shock to the grain stream.
Material science is central to the reliability story of our agricultural grain unloading gearbox. The housing is pressure-cast from ZL107-J-T6 aluminium alloy — a material that delivers an exceptional strength-to-weight ratio, reducing the overall platform mass of the combine’s unloading assembly without any compromise on structural integrity under shock loading. The internal gear shafts are precision-machined from 20CrMnTi chromium-manganese-titanium alloy steel and subjected to a full carburising-and-quenching heat treatment cycle, producing surface hardness values of HRC 58 to 62 while retaining a tough, impact-resistant core. This dual-property metallurgy allows the gearbox to resist both surface contact fatigue and sudden overload simultaneously — the combination that proves decisive in the unpredictable mechanical conditions of a British harvest season.
Key Internal Components
| Component | Primary Function | Material / Standard |
|---|---|---|
| Housing & Casing | Structural enclosure, protects internals from field contamination | ZL107-J-T6 Aluminium Alloy |
| Gear Shafts | Transmit and step down rotational torque from input to output | 20CrMnTi, HRC 58–62 |
| Roller Bearings | Reduce friction, support axial and radial load under continuous duty | Chrome steel, long-life grease packed |
| Seals & Gaskets | Block dust and moisture ingress; retain internal lubricant | Nitrile Rubber, IP65 |
| Lubrication System | Maintains oil film on all contact surfaces, dissipates heat | Splash oil + machined channels |
| Input / Output Flanges | Interface gearbox with engine drive and auger/elevator shaft | Precision-machined, configurable keyway |
Customer Success Stories
Field performance across multiple continents and crop types demonstrates the real-world value of our grain unloading gearbox range. Here are three verified accounts from operators who have put our product through demanding harvesting seasons.
★★★★★
“We run a 2,800-hectare rice and wheat operation in the Po Valley, northern Italy. After fitting your grain unloading gearbox to three of our New Holland CR combines, unloading cycle times dropped by 18% and we had zero mechanical failures through the entire 2023 harvest. The material quality is clearly a step above anything we used before. We placed a repeat order before the 2024 season without hesitation.”
— Marco Ferretti, Operations Director, Ferretti Agri S.r.l., Lombardy, Italy
★★★★★
“As an agricultural machinery parts dealer covering Nottinghamshire and Lincolnshire, we’ve been sourcing replacement agricultural grain unloading gearboxes from agriculturalgearboxes.top for two full seasons now. The fitment on John Deere S770 machines is exact. Lead times are consistently honoured, and the technical support team answers specification questions faster than any domestic supplier we’ve used. Our workshop customers keep coming back for these.”
— James Thornton, Parts Manager, Thornton Agricultural Machinery Ltd., Nottinghamshire, United Kingdom
★★★★★
“Our contract harvesting fleet operates across Central Java — wet and dry season paddy rice, back-to-back campaigns. After a competitor’s gearbox unit failed mid-season at the worst possible moment, we switched to these. The IP65 sealing holds up brilliantly in muddy conditions and the torque delivery is remarkably smooth. Grain breakage at the intake dropped noticeably. We have now standardised this grain unloading gearbox across all 11 of our Kubota combines.”
— Wirawan Santoso, Fleet Manager, Santoso Harvest Services, Central Java, Indonesia
Selecting the Right Grain Unloading Gearbox for Your Harvester
Choosing the right grain unloading gearbox for your combine begins with a clear picture of your engine’s PTO or belt-drive output — specifically the peak torque value available at the gearbox input shaft. The gearbox’s rated input torque must comfortably exceed this figure to avoid gear tooth overload under surge conditions, which are common when an auger runs into a compacted grain mass at the beginning of an unloading cycle. Our applications engineers can assist with this calculation based on your harvester’s published technical data.
Field and crop conditions matter as much as raw power figures. UK operators working with high-moisture autumn harvests — common in wetter growing regions such as the Scottish Borders or parts of Wales — should specify gearboxes with enhanced sealing packages and conservative output speed ratings to manage slipping in augered grain at elevated moisture levels. Shaft dimensions, keyway specifications, and mounting flange geometry must also be confirmed against your existing driveline before any order is finalised. We provide free pre-purchase technical verification for all B2B enquiries submitted to [email protected], covering fit, compatibility, and recommended gear ratio selection for your specific harvesting application.
Custom Engineering & Manufacturing Capability
No two harvesting operations are identical, and our manufacturing facility is built with that reality at its core. Equipped with multi-axis CNC gear hobbing centres, coordinate measuring machines (CMM) for dimensional verification, and dedicated in-house heat treatment lines for carburising and quenching operations, we have the technical infrastructure to engineer bespoke agricultural grain unloading gearboxes from first principles. UK machinery dealers, OEM combine builders, and large arable estate operators can specify custom input/output shaft configurations, non-standard gear ratios, alternative mounting flange patterns, reinforced housing geometries for heavy-duty platforms, and specific primer or topcoat colours for fleet branding.
Our standard compatibility range already covers John Deere, Case IH, CLAAS, New Holland, Kubota, Lovol, Zoomlion, Krone, Shibaura, Kioti, Challenger, Versatile, and Valtra platforms. For machines outside this list, send us your existing gearbox housing drawings, a dimensional sketch, or the OEM part number and our engineering team will reverse-engineer a fully compatible replacement. We accommodate both high-volume trade orders and smaller individual farm purchases, making quality grain unloading gearboxes accessible to the full spectrum of UK agricultural businesses — from sole-trader harvesting contractors to major estate management groups.
Frequently Asked Questions
What is the typical lead time when ordering a grain unloading gearbox for delivery to a UK farm or machinery dealer?
Standard stocked models are despatched within 5 to 7 working days of confirmed order payment. Sea freight to UK ports typically adds 15 to 25 transit days, while air freight options reduce this to 5 to 7 days for urgent requirements. Custom-engineered agricultural grain unloading gearboxes with non-standard gear ratios or bespoke shaft configurations require 30 to 45 days for production. We strongly recommend placing orders well before the spring pre-harvest preparation window or the autumn harvest season to guarantee timely arrival.
How do I get an accurate price or formal quote for a grain unloading gearbox compatible with my John Deere or CLAAS combine harvester in England?
Email [email protected] with your combine make, model, year of manufacture, and any OEM part numbers or dimensional drawings you have available. Our applications team will return a confirmed compatibility assessment and a formal quotation — in most cases within one UK business day for standard enquiries. There is no charge for technical pre-purchase consultations.
Which grain crops can this agricultural grain unloading gearbox handle beyond rice harvesting in a UK arable rotation?
The grain unloading gearbox performs effectively across rice, wheat, barley, oilseed rape, maize, and oats without modification in the majority of standard configurations. Adjustable output gear ratio settings and available torque limiter options allow UK arable operators rotating between autumn-sown cereals and spring crops to use the same unit across multiple campaigns — reducing spare parts inventory and simplifying servicing across a mixed-crop operation.
What maintenance intervals and service schedule does a grain unloading gearbox require during a demanding UK harvest season?
Under standard UK operating conditions, we recommend checking lubricant levels and seal condition every 50 hours of operation during the harvest period. A full oil change should be performed at the beginning of each season or every 250 operating hours — whichever falls first. Bearing play and gear lash tolerances should be inspected once annually during winter service. A full service manual and recommended lubricant specification document are supplied with every gearbox at no additional cost.
Can I order a custom grain unloading gearbox with a non-standard gear ratio for a harvesting contractor working on sloped or wet terrain in Scotland?
Custom gear ratio configurations are one of our core manufacturing specialities. Scottish contractors working on hillside terrain and in high-moisture field conditions frequently require lower output ratio configurations to achieve the maximum torque delivery and reduced auger speed needed for controlled grain flow. Submit your technical requirements to [email protected] and we will prepare a full custom engineering proposal and cost estimate at no charge.
Where can a UK agricultural machinery dealer or arable farm find a reliable supplier of agricultural grain unloading gearboxes with direct shipping to England, Scotland, or Wales?
agriculturalgearboxes.top ships directly to agricultural merchants, OEM equipment builders, and individual farm operations throughout England, Scotland, Wales, and Northern Ireland. We manage all export documentation and offer both sea freight consolidation for cost efficiency on larger orders and express air freight for time-critical replacement requirements. Contact us to discuss the most appropriate shipping arrangement for your order volume and delivery timeline.
