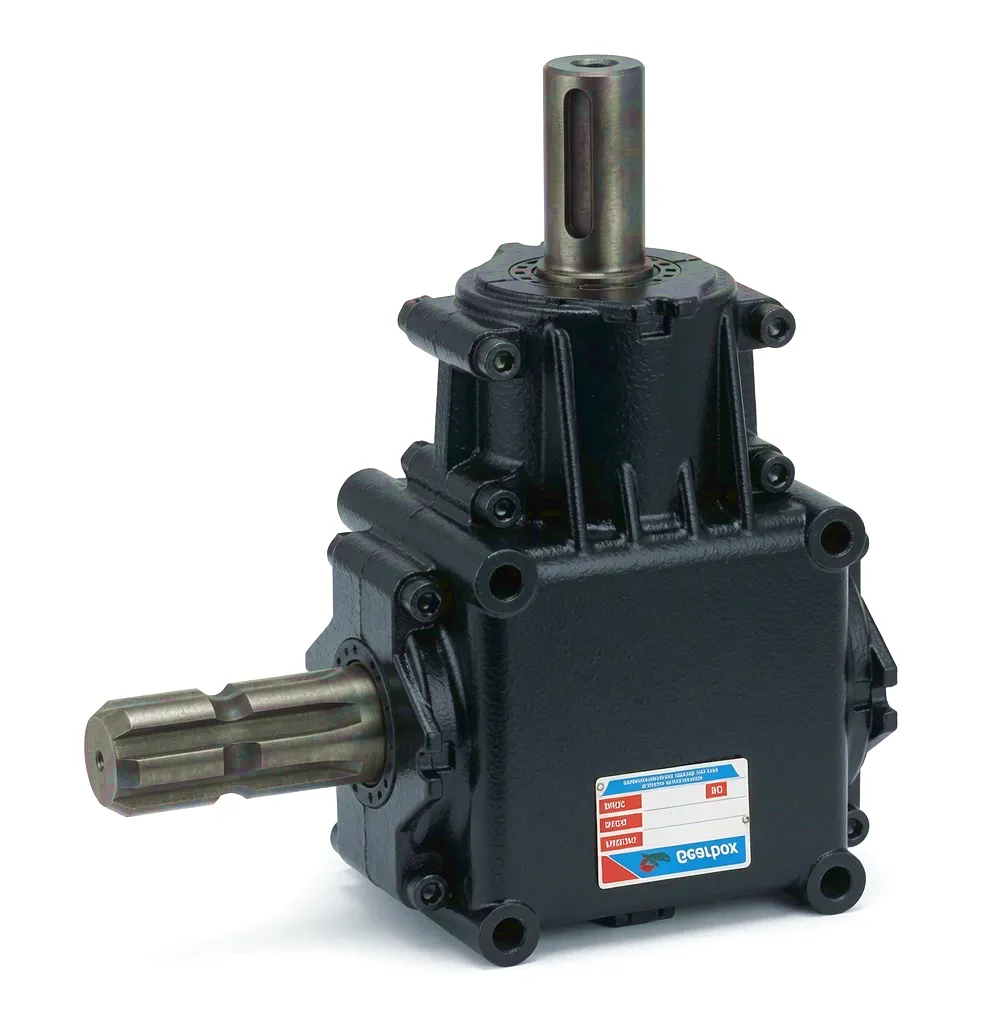

HC-RV022 (X) Aluminium Box Series Gearbox
Engineered for precision lawn care and turf management across the United Kingdom. The HC-RV022 (X) delivers 15HP rated power, tri-ratio flexibility, and a lightweight aluminium housing — built for demanding British agricultural conditions.
What Makes the HC-RV022 (X) the Right Choice for UK Operators?
The HC-RV022 (X) aluminium box series agricultural gearbox represents a refined solution for turf maintenance and lawn mowing operations across the United Kingdom. Designed to meet the rigorous demands of British groundskeeping, municipal parks maintenance, golf course upkeep, and commercial landscaping, this gearbox combines a compact aluminium casing with high-grade internal gearing to deliver consistent performance across varied terrain and seasonal conditions. Rated at 15HP with a 540 rpm input speed, the HC-RV022 (X) is compatible with a broad range of PTO-driven mowing machines and rotary cutters widely used across England, Scotland, Wales, and Northern Ireland. Its tri-ratio configuration — 1:1, 1.46:1, and 1:2.91 — allows operators to match output speed precisely to the cutting deck or blade assembly without requiring mechanical modification, making it a versatile asset across both small estate management and large-scale agricultural contracts. The aluminium housing keeps overall unit weight at just 7 kg, significantly reducing stress on implement attachment points and improving fuel efficiency on compact tractors, which remain the machine of choice for many UK land managers working on smaller holdings or in urban green-space environments.
Beyond raw specification, the HC-RV022 (X) gearbox draws on over 18 years of applied engineering in power transmission for agricultural machinery. The internal tooth geometry, with module values of 4.5, 5.0, and 3.0 corresponding to each ratio variant, ensures efficient load distribution under sustained operation. Unlike lower-grade gearboxes that rely on minimal-contact tooth profiles, the HC-RV022 (X) uses 19/19, 19/13, and 32/11 gear pair configurations to achieve stable meshing, reduced wear, and longer service intervals — a practical advantage for UK contractors who operate through the core mowing season with minimal downtime opportunity.
Core Product Advantages
Tri-Ratio Flexibility
Three selectable gear ratios — 1:1, 1.46:1, and 1:2.91 — provide operational flexibility without tooling changes, covering everything from standard rotary mowing to high-speed grass dispersal.
Lightweight Aluminium Housing
The die-cast aluminium body keeps net weight to just 7 kg, reducing implement-side loading, improving tractor fuel economy, and easing manual handling during seasonal maintenance.
PTO-Ready Interface
Standard 1 3/8 Z6 splined input and optic axis output configuration ensure direct compatibility with common UK tractor PTO standards, simplifying fitment across a wide range of machine types.
Precision Gear Meshing
Optimised tooth module values (4.5 / 5.0 / 3.0) across gear configurations deliver quiet, efficient power transfer with minimal backlash — extending service life and reducing vibration fatigue on mower decks.
Suited to British Field Conditions
Sealed bearing assemblies and corrosion-resistant surface treatment protect internal components against the moisture-heavy conditions common across UK lowland farms, riverside meadows, and coastal estates throughout the growing season.
Low Maintenance Design
Factory oil-filled housing with strategic vent positioning eliminates routine oil changes during a standard mowing season, cutting service costs for commercial operators who run multiple units across large-acreage contracts.
Teknik Özellikler
Full parameter data as supplied from the engineering drawing. All figures subject to confirmation at time of order.

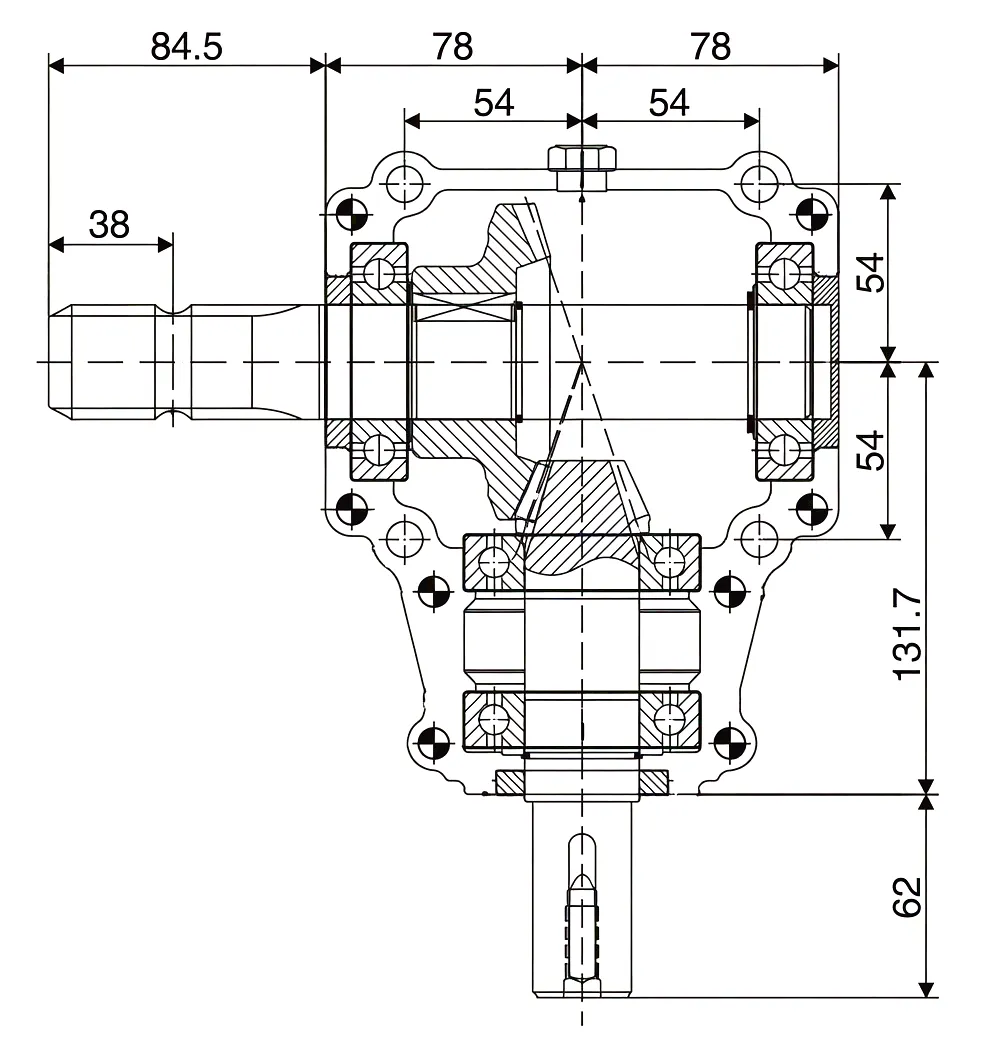

Engineering Drawing — HC-RV022 (X)
How the HC-RV022 (X) Works, What It’s Made From, and Where It’s Used
Operating Principle
Power enters the HC-RV022 (X) through the 1 3/8 Z6 splined input shaft, which is directly driven by a tractor’s 540 rpm PTO. The input shaft engages a primary spur gear pair machined to close tolerances inside the sealed aluminium housing. Depending on the selected ratio, the engaged gear pair steps the rotational speed either 1:1 for direct pass-through, reduces it by a 1.46:1 factor for moderate torque increase, or multiplies it by a 2.91 ratio for high-speed blade drive applications. Output is delivered through an optic axis arrangement that translates power to the mowing deck or cutter bar with minimal angular error. Internal lubrication is maintained by a factory-charged oil bath, with gear splash ensuring continuous film coverage across all contact surfaces under normal operating inclinations, keeping running temperatures stable across extended cutting sessions.
Malzeme Bileşimi
The outer casing of the HC-RV022 (X) agricultural gearbox is produced from high-pressure die-cast aluminium alloy, selected for its combination of mechanical strength, thermal conductivity, and low specific gravity. Internal gears are manufactured from medium-carbon alloy steel, precision-hobbed and heat-treated to achieve surface hardness in the HRC 58–62 range. Input and output shafts are produced from case-hardened alloy steel with ground journal surfaces to tight dimensional tolerances, ensuring consistent bearing fit over the gearbox’s service life. Rolling element bearings — selected from grade-C3 bearing stock — are pressed into machined bores within the housing, providing radial and axial load support during heavy-duty seasonal mowing. All fasteners are zinc-plated steel, rated for vibration resistance appropriate to PTO-driven agricultural implement duty.
Typical Application Scenarios in the UK
Across the United Kingdom, the HC-RV022 (X) lawn mower gearbox finds its strongest application in professional turf management and rural estate maintenance. Golf courses in Scotland and England regularly specify this series for fairway and rough-cut mowers, where the 1:2.91 step-up ratio drives high-blade-tip-speed cutting systems effectively from standard 540 PTO tractors. Local authority grounds maintenance contractors across the Midlands and South East use HC series gearboxes on council verge-cutting machines operating through the full April-to-October season. Equestrian property managers in the Home Counties specify the direct 1:1 ratio variant for paddock mowing, where consistent blade speed is more important than speed multiplication. Farm contracting businesses servicing arable holdings in East Anglia frequently hold spare HC-RV022 (X) units as service-exchange items during peak season, given the gearbox’s cross-compatibility with multiple brands of rear-mounted and mid-mount mowers.
Related Lawn Mower Series Gearboxes
HC-01-707 Lawn Mower Series Gearbox
Heavy-duty series for high-output commercial mowing and multi-blade deck configurations.
HC-X30 Lawn Mower Series Gearbox
Compact aluminium-body design with reinforced output bearing for high-side-load mowing applications.
Customer Success: Grounds Management Contractor, East Midlands, UK
Real-world deployment case — commercial grounds maintenance, seasonal rotary mowing contract
Background: A mid-sized grounds maintenance contractor operating from Nottinghamshire had been experiencing recurring gearbox failures on a fleet of six rear-mounted rotary mowers. The existing units — sourced from a European supplier — were proving expensive to replace at peak season and offered limited technical support for ratio selection. The company maintained mowing contracts covering over 1,200 acres of local authority parks, school playing fields, and highway verges across Derbyshire, Leicestershire, and Nottinghamshire.
Çözüm: Following a trial installation on two machines at the start of the season, the contractor replaced all six mower gearboxes with HC-RV022 (X) units configured to the 1:2.91 step-up ratio. The 540 rpm input matched their John Deere and New Holland tractor fleet without modification. The 7 kg unit weight was noted as a meaningful improvement over the previous gearboxes, which placed higher bending loads on the implement lift arms of their smaller 60-80HP tractors.
Sonuç: Through one complete mowing season covering approximately 420 operating hours per machine, no gearbox failures were recorded across the six-unit fleet. The contractor subsequently ordered a further four units as service-exchange spares and specified the HC-RV022 (X) as the standard replacement for their entire rotary mowing fleet going forward. Total downtime cost during the season was reduced by over 60% compared to the previous year.
Müşterilerimiz Ne Diyor?
“We’ve run HC-RV022 gearboxes through two full seasons now on our verge-cutting fleet. No failures, no oil leaks, and the fit on our Kuhn mower decks was straightforward. Good value for the price point compared to OEM parts.”
— R. Hartley, Fleet Manager
Grounds maintenance contractor, Yorkshire, UK
“We specified the 1:1 ratio version for our paddock cutters and the gear engagement is clean with no noticeable vibration. The aluminium body has held up well in muddy field conditions. Delivery was fast and the technical documentation was clear.”
— S. McAllister, Estate Manager
Equestrian property, Shropshire, UK
“Sourced these for a golf course contract where we couldn’t afford mid-season breakdowns. The HC-RV022 X units ran faultlessly from April through October. The weight saving over our previous gearboxes was noticeable on our smaller tractors. Would recommend.”
— T. Brennan, Course Manager
Golf course maintenance, Midlands, UK
Manufacturing Facility and Custom Engineering Services
The HC-RV022 (X) agricultural gearbox is produced in a dedicated power transmission manufacturing facility equipped with CNC gear hobbing, grinding, and heat-treatment lines operating to controlled process standards. Every aluminium housing is pressure-tested for integrity before assembly, and final units undergo loaded run-in checks to verify gear mesh quality and bearing function before dispatch.
Beyond standard catalogue specification, the facility offers a comprehensive gearbox customisation service for OEM and volume buyers. Ratio variants outside the standard 1:1 / 1.46:1 / 1:2.91 range can be engineered to specification within the same housing envelope. Custom input shaft configurations — including alternative spline profiles, shaft diameters, and keyway arrangements — are available for machine builders integrating the HC-RV022 (X) into new implements. Paint and surface treatment options including powder coat, anodising, and specific corrosion protection grades can be specified for applications in coastal or high-moisture environments common across western UK agricultural regions. Minimum order quantities for customised builds are available on request, and our engineering team provides full dimensional confirmation drawings before production commitment.
CNC machining and gear assembly area
Ratio Selection Guide for UK Applications
Sıkça Sorulan Sorular
Ready to Source HC-RV022 (X) Gearboxes for Your UK Operation?
Contact our team for pricing, availability, and custom engineering enquiries. We supply to grounds maintenance contractors, OEM manufacturers, and agricultural dealers throughout the United Kingdom.
