Revolutionizing Sugarcane Transport: The Role of the Elevator Slew Gearbox

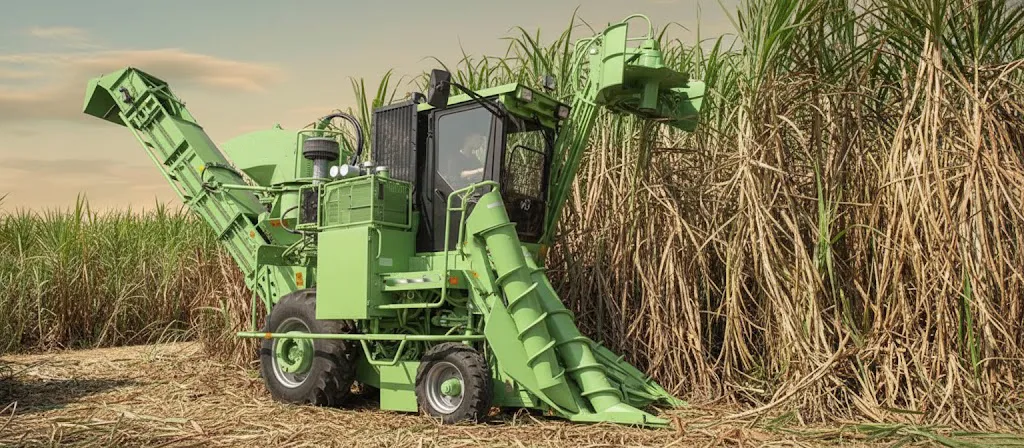

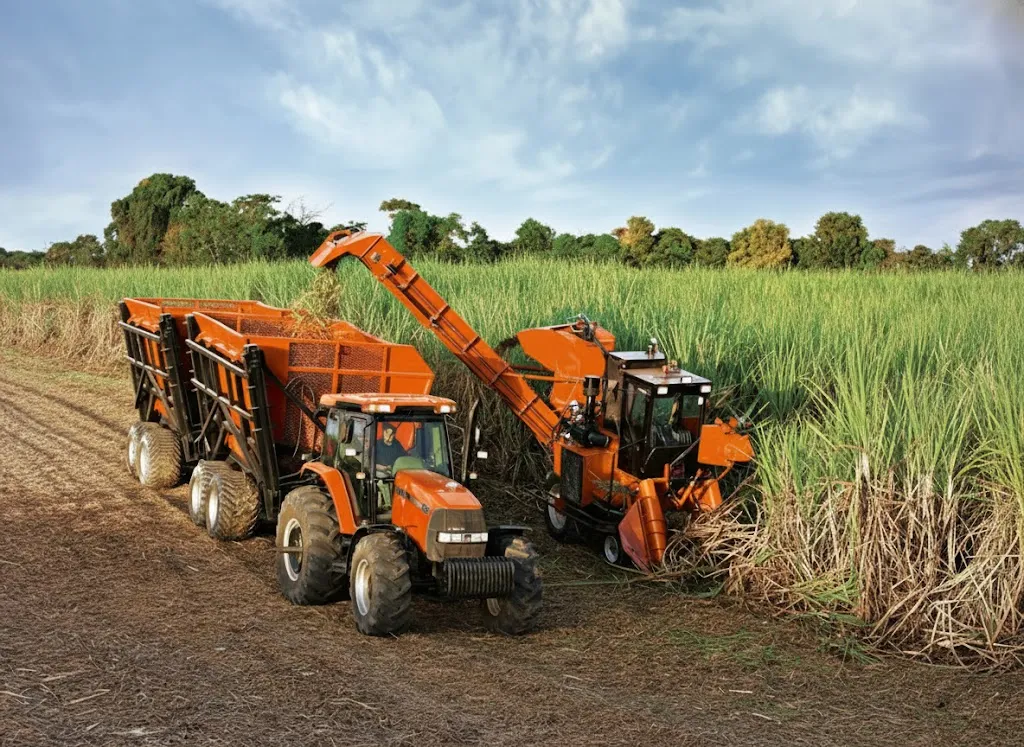

The Elevator Slew Gearbox is the “pivot heart” of a modern sugarcane harvester. In heavy-duty harvesting operations, the elevator must rotate smoothly to discharge cut cane into trailers moving alongside the harvester. This requires a gearbox capable of handling high radial loads, frequent start-stop cycles, and corrosive organic matter. Ever-Power has engineered this specific slew drive to withstand the rigorous vibration of the primary extractor while maintaining millimetric precision in positioning the discharge spout.

Our gearboxes utilize advanced planetary reduction technology, ensuring that even under the maximum load of 15 tons of processed cane per hour, the rotation remains fluid. This is particularly critical in the soft, peaty soils often found in certain Dutch agricultural reclamation projects where machine stability and smooth movement are paramount to prevent soil compaction and equipment tipping.

Comprehensive Engineering Specifications (Model EP-SLW-800)

Strategic Positioning and Working Principle

In the Sugarcane Harvester ecosystem, the elevator slew gearbox is typically mounted at the interface between the harvester main frame and the discharge elevator assembly. It receives power from the machine’s primary hydraulic circuit. The core function is to facilitate a 180-degree rotation (swivel) of the elevator arm. This allows the harvester to discharge cane to either side or to the rear, providing the operator with extreme flexibility in various field layouts.

Technically, the gearbox utilizes a multi-stage planetary gear set to convert high-speed, low-torque hydraulic input into low-speed, high-torque output needed to swing the massive elevator arm. The integrated multi-disc brake ensures that once the elevator reaches the desired angle, it remains locked in place despite the centrifugal forces generated by the internal conveyor belt carrying heavy cane stalks.

Senior Application Engineer’s Field Notes: Overcoming “Cane Juice Corrosion”

“During my 18 years in the field, specifically monitoring sugarcane operations in Queensland and the Caribbean, I observed a recurring failure in standard slew drives: the acidic nature of fermented sugarcane juice was eating through the standard nitrile seals within weeks. This led to internal contamination and gear teeth spalling. For the Ever-Power Elevator Slew Gearbox, we implemented a dual-labyrinth seal system using Viton-B compounds. We also applied a proprietary ceramic-infused anti-corrosion coating to the output shaft. In our 2,000-hour stress test in muddy, high-acidity environments, the Ever-Power units showed zero internal moisture ingress, while competitors’ units failed at the 600-hour mark. This is the difference between keeping the mill running and a million-dollar harvesting delay.”

[Netherlands & UK] Northern Europe Operational Dynamics & Compliance

1. Safety Regulations and Certification

In the Netherlands and the UK, all agricultural components must strictly adhere to the Directive européenne 2006/42/CE relative aux machines et le UKCA (UK Conformity Assessed) marking requirements post-Brexit. Ever-Power gearboxes are fully compliant with ISO 4413 standards for hydraulic fluid power and BS EN ISO 12100 for machine safety. Our units include specific pressure relief porting to prevent catastrophic housing failure in case of hydraulic surges.

2. Crop Seasons and Terrain Challenges

• Netherlands (Flevoland/Zeeland): While sugarcane isn’t the primary crop, our slew gearboxes are widely adapted for sugar beet harvesters and high-capacity biomass harvesters operating in soft, poldered land. The high humidity requires superior rust protection (C5-M standard).
• Royaume-Uni (East Anglia/Lincolnshire) : Heavy clay soils and intensive harvesting windows mean machines run 24/7. Our gearboxes are designed for “Zero-Maintenance” during the 4-month peak season.

3. Interface Standards

Most European harvesters utilize 1-3/8″ or 1-3/4″ 21-spline PTO inputs or SAE standard hydraulic interfaces. Ever-Power provides universal mounting plates that adapt directly to John Deere, CLAAS, and Case IH harvester frames without requiring structural modification.

Competitive Benchmarking: Ever-Power vs. Tier 1 Manufacturers

Disclaimer: Brand names of competitors are used for reference and performance comparison only. Ever-Power is an independent manufacturer.

Warning Signs: When to Replace Your Slew Gearbox

• Unusual Vibration: Excessive shaking during elevator rotation indicates bearing wear or gear misalignment.
• Erratic Movement: “Jerky” rotation often points to internal hydraulic bypass or broken gear teeth.
• Décoloration de l'huile : Metallic flakes in the oil are a definitive sign of impending gear failure.
• Slewing Drift: If the elevator moves when the controls are neutral, the internal brake discs are likely worn beyond spec.

Integrated Power Transmission Solutions

Ever-Power doesn’t just provide boîtes de vitesses; we provide the entire drivetrain ecosystem. For the Elevator Slew Gearbox to function perfectly, it must be paired with high-quality components:

One-Stop Supply: Ensure 100% compatibility and reduce lead times by sourcing your entire harvester drivetrain from Ever-Power.

Q1: What is the average lead time for a custom-ratio slew gearbox for my sugarcane harvester in the UK?
A: For standard configurations, we ship within 2-3 weeks. Custom ratios or specific mounting flanges for unique OEM harvesters typically take 6 weeks including full dyno testing.

Q2: How do Ever-Power slew gearboxes handle the extreme mud and debris common in Dutch biomass harvesting?
A: We utilize IP67-rated seals and a specialized “mud-shield” flange design that physically prevents stalks and soil from reaching the primary oil seals.

Q3: Can your gearboxes directly replace Comer or Bonfiglioli units found in John Deere harvesters?
A: Yes, our EP-SLW series is engineered as a drop-in replacement for leading OEM brands. (Note: Reference names are for compatibility purposes only).
