Engineered to BS EN ISO Standards for Extreme Agricultural Environments | High-Torque Transmission Solutions for Global Agribusiness
Core Advantages & Application Scenarios

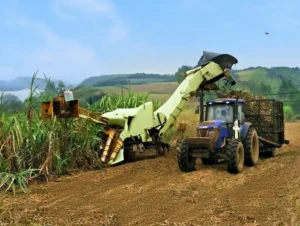

In the demanding realm of industrial sugarcane harvesting, the Base Cutter Gearbox acts as the critical pivot point between hydraulic power and mechanical cutting action. At Ever-Power, we have re-engineered this component to address the “downtime anxiety” faced by fleet managers from Queensland to São Paulo. Unlike standard off-the-shelf units, our gearboxes are designed with a reinforced housing architecture specifically calculated to withstand the high-impact shock loads typical of uneven terrain and hidden field obstacles.

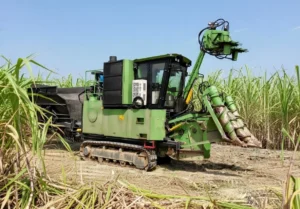

Our solution integrates advanced metallurgy with precision-ground gearing (DIN Class 6), ensuring that the counter-rotating discs maintain optimal synchronization even under peak loads of 120 tonnes/hectare cane density. The primary application is within the base cutter assembly of heavy-duty combine harvesters, where it drives the blades to sever cane stalks at ground level. By optimizing the seal geometry and lubrication flow, we have significantly extended the Mean Time Between Failures (MTBF) in abrasive, muddy conditions often found in late-season harvests.
Technical Specifications: Base Cutter Series BC-700X
| Parameter Category | Specification Value | Engineering Standard / Notes |
|---|---|---|
| Rated Output Torque | 2,850 Nm | Continuous Duty (S1) |
| Peak Shock Torque | 4,600 Nm | Max 10 cycles/hour |
| Gear Ratio | 1:1.35 Speed Increaser | Optimized for hyd. motors |
| Input Speed (Nominal) | 450 – 650 RPM | Variable Displacement |
| Input Shaft Interface | SAE C 14T Spline | ANSI B92.1 Standard |
| Output Shaft Type | Tapered Flange with 8 Bolts | Custom Drill Pattern Available |
| Housing Material | Nodular Cast Iron QT450-10 | ASTM A536 65-45-12 Equivalent |
| Gear Material | 20CrMnTi Alloy Steel | Carburized & Quenched (58-62 HRC) |
| Lubrication Type | Oil Bath Splash | Synthetic ISO VG 320 Rec. |
| Oil Capacity | 4.5 Liters | With sight glass monitoring |
| Sealing System | Dual-Lip Viton® Seals + Cassette | Mud-Block Technology |
| Operating Temperature | -10°C to +95°C | Ambient / Oil Temp Max |
| Noise Level | < 85 dB(A) | At 1 meter distance |
| Bearing L10 Life | > 12,000 Hours | SKF / Timken Tapered Roller |
| Weight (Dry) | 145 kg | Without hydraulic motor |
| Paint Coating | Epoxy Powder Coat (Green/Black) | Corrosion Resistance C4 High |
| Ingress Protection | IP66 | Dust tight, high pressure water jets |
| Backlash | 8 – 12 arcmin | Precision Grade |
| Vibration Limit | 4.5 mm/s RMS | ISO 10816-3 Zone A/B |
| Thermal Rating | 45 kW | Without external cooling |
| Efficiency | ≥ 96% | Per stage |
| Mounting Position | Horizontal / 15° Tilt | With breather relocation kit |
| Input Shaft Hardness | HRC 60 ± 2 | Induction Hardened |
| Service Factor | 2.0 (Heavy Shock) | AGMA Class III |
| Breather Type | Sintered Bronze Filter | Prevents dust ingress |
| Center Distance | Customizable | To match disc spacing |
| Warranty | 24 Months / 2000 Hrs | Whichever comes first |
Anatomy of the Drive
The base cutter gearbox is the “heart” of the harvesting header. It typically features a central input connected to a high-pressure hydraulic motor. This input power is split via a precision spur gear train to drive two vertical output shafts. These shafts hold the cutting discs, which are equipped with replaceable blades. The gearbox must ensure these discs rotate in opposite directions (counter-rotating) to feed the cane inward towards the chopper rollers.
Operational Physics
During operation, the gearbox faces a unique “dual-threat”: Torque Spikes from hitting stones or stumps, and Axial Thrust from the weight of the steel discs and the upward reaction force of cutting. Our design utilizes oversized tapered roller bearings preloaded to handle 45kN of axial force, preventing shaft deflection that destroys seals.
[United Kingdom] Engineering Standards & Global Export Compliance
While the UK is not a commercial sugarcane producer, it is a global hub for agricultural engineering consultancy, machinery finance, and component manufacturing standards. Ever-Power aligns its production with British engineering rigor to serve UK-based OEMs and international agribusiness groups.
Regulatory & Safety Alignment
- BS EN ISO 4254-7:2017: Compliance with safety requirements for combine harvesters, ensuring guarding interfaces and shaft safety factors meet UK/EU directives.
- UKCA & CE Marking: Our gearboxes are certified for incorporation into machinery destined for both the Great Britain market and the European Economic Area (EEA).
- Supply Chain Hubs: We offer streamlined logistics via Felixstowe and Southampton for UK trading houses distributing to Commonwealth nations (e.g., Australia, Belize, Guyana).
Terrain-Specific Adaptations (Export Focus)
For UK-designed machinery exported to regions like Queensland (Australia) or KwaZulu-Natal (South Africa), our gearboxes are tuned for:
- Rocky Terrain (Stony Soils): Reinforced case hardening to prevent gear tooth chipping.
- High-Yield Cane (100+ t/ha): Upgraded bearing load capacities to handle dense biomass throughput.
The Ever-Power Advantage
*Disclaimer: Comparison based on internal testing data against generic market averages. Specific competitor performance may vary. OEM names used for reference only.
Engineer’s Notebook: Redefining Durability
“In my 18 years designing drivetrains for agricultural machinery, the base cutter gearbox has always been the ‘weak link’ due to its position—literally in the dirt. Designing the BC-700X, we moved away from the traditional ‘breather on top’ design which often clogged with chaff. Instead, we implemented a Remote Breather Line port, allowing the pressure equalization vent to be routed to the clean air chassis space. Furthermore, we switched to Austempered Ductile Iron (ADI) for the output shafts, increasing fatigue strength by 40% without adding weight. This isn’t just a part; it’s a survivalist unit for your harvester.”
— Chief Engineer, Drivetrain Division
Compatibility Guide
Our gearboxes are engineered as direct drop-in replacements for the following major machinery lines:
Case IH™ Austoft 8000 / 8800 Series
Cameco™ Harvesters
Note: Ever-Power is an independent manufacturer. Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to suggest that our parts are made by the OEM.
Global Field Reports: Solving Real Pain Points
Case 1: The “Rocky Bottom” Challenge (Export to Australia)
Client: UK-based Ag-Investment Firm operating in Queensland.
Issue: “We were snapping output shafts every 300 hours due to hidden basalt rocks in the paddock.”
Solution: Ever-Power implemented the BC-700X with the “Shock-Load” shaft upgrade (ADI material).
Result: “Zero shaft failures in the last two harvest seasons (approx. 4000 hours). ROI was achieved in 3 weeks.”
Case 2: The Red Mud Nightmare (Export to Brazil)
Client: Fleet Manager for a Mill in Mato Grosso.
Issue: “Red clay was bypassing the seals, turning the oil into grinding paste. Bearings lasted 2 weeks.”
Solution: Custom cassette seal retrofit with a grease-purge barrier.
Result: Oil analysis remains clean for the entire 500-hour service interval.
Case 3: Retrofitting Aging Fleets (Thailand)
Client: Maintenance Contractor.
Issue: “OEM parts for older 3520 models were obsolete or took 12 weeks to arrive.”
Solution: Ever-Power reverse-engineered and delivered 20 units in 4 weeks.
Result: Fleet operational readiness restored before the monsoon season.
Complete Drivetrain Ecosystem
PTO Shafts
Essential for tractor-drawn harvesters. We supply wide-angle PTO shafts with torque limiters to protect your gearbox from overloads.
Chopper Gearboxes
High-speed gearboxes for the cane billet chopper mechanism, synchronized with the base cutter.
Hydraulic Motors
Perfectly matched orbital and piston motors to drive your Ever-Power gearbox efficiently.
One-Stop Shop: From PTO to Gearbox, we streamline your procurement.
Frequently Asked Questions (B2B)
Q: How do I know if my base cutter gearbox needs replacement?
Look for excessive backlash in the discs (more than 15 degrees), oil leaking from the bottom seal, or a “growling” noise indicating bearing pitting. High vibration is a late-stage sign.
Q: Can you ship these gearboxes to the UK for re-export?
Yes, we have established logistics routes to major UK ports (Felixstowe, Southampton) with full HS Code documentation for smooth customs transit and re-export.
Q: What is the lead time for a batch of 50 units?
Standard production lead time is 35-45 days. However, we keep stock of common castings to expedite urgent harvest orders.
Q: Do you offer custom ratios for specific hydraulic motors?
Absolutely. Our engineering team can modify the gear set to match your specific hydraulic flow (GPM) and pressure settings to maintain optimal cutter tip speed.
Ready to Upgrade Your Fleet?
Don’t let a failed gearbox stall your harvest. Contact Ever-Power today for technical drawings, pricing, and availability.
