Engineered for the dense polders of the Netherlands and the rocky highlands of the United Kingdom.
The definitive replacement solution for professional vegetation management.
Operational Resilience
In the high-resistance soil conditions of the Netherlands (specifically the heavy clay of Flevoland) and the unforgiving rocky pastures of the UK, standard gearboxes fail due to thermal overload and shock fractures. EVER-POWER gearboxes are reinforced with superior alloy steel and enhanced oil capacity to withstand continuous 14-hour duty cycles during harvest seasons.
The Critical Free-Wheel Function
Our gearboxes integrate a heavy-duty internal free-wheel clutch (overrunning clutch). This is non-negotiable for flail mowers. When the tractor PTO disengages, the heavy rotor inertia (often exceeding 150kgm²) must dissipate naturally. Without this clutch, the inertia would back-drive the tractor transmission, causing catastrophic damage to the PTO brake band or clutch pack.
Technical Engineering Specifications
| Parameter | Waarde / Specificatie | Technische toelichting |
|---|---|---|
| Input Power Rating (Continuous) | 48 kW (65 HP) @ 540 RPM | Safety Factor 1.5 |
| Maximale koppelcapaciteit | 890 Nm | Momentary shock load limit |
| Profiel van de ingaande as | 1-3/8″ Z6-vertanding (DIN 9611) | Standaard landbouwinterface |
| Profiel van de uitgaande as | Ø40mm Cylindrical with Keyway | For pulley mounting |
| Transmissieverhouding | 1 : 2.93 (Speed Increaser) | Optimized for rotor tip speed |
| Internal Clutch Type | Integrated Free-Wheel (Sprag type) | Prevents PTO back-drive |
| Behuizingsmateriaal | Nodulair gietijzer QT450-10 | High shock resistance |
| Tandwielmateriaal | 20CrMnTiH gelegeerd staal | Gecarburiseerd en afgeschrikt |
| Tandwielhardheid (oppervlakte) | 58-62 HRC | Ensures wear resistance |
| Tandwielhardheid (kern) | 30-45 HRC | Behoudt zijn stevigheid |
| Smeertype | Oil Bath Splash System | SAE 85W-140 recommended |
| Oliecapaciteit | 1,2 liter | +15% over standard models |
| Bedrijfstemperatuurbereik | -20°C tot +110°C | With Viton seals |
| Afdichtingstype | Double Lip TC Nitrile/Viton | Dust & Moisture protection |
| Lagerlevensduur (L10) | > 5.000 uur | Heavy-duty tapered roller |
| Geluidsniveau | < 82 dB(A) @ 1m | Precision ground teeth |
| Verzet | 0,15 – 0,25 mm | Adjustable via shims |
| Verf/Coating | Epoxy Powder Coat (RAL 9005) | Corrosion resistance (Salt Spray 500h) |
| Montagepatroon | 4x M16 Bolts, 140x140mm center | Standard interface |
| Gewicht (droog) | 28,5 kg | – |
| Ontluchtingsopening | Brass Sintered Filter | Voorkomt interne drukopbouw. |
| Invoerrotatie | CW or CCW (Configurable) | Depending on mounting |
| Efficiëntie | 96% per fase | Minimize power loss |
| Servicefactor | 1.25 (AGMA Klasse I) | – |
| Asmateriaal | 40CrNiMoA | High fatigue strength |
| Bescherming tegen indringing | IP65 | Washdown resistant |
| Max Ambient Temp | 45°C | – |
The Mechanics of Vegetation Control
Strategic Positioning & Energy Conversion
De Haakse tandwielkast voor klepelmaaier sits at the heart of the drivetrain, typically mounted centrally on the mower deck. Its primary role is twofold:
- Vector Transformation: It redirects the horizontal rotational energy from the tractor’s PTO shaft by 90 degrees to drive the side pulley system.
- Velocity Amplification: Unlike rotary cutters that often use a 1:1 or reducer ratio, flail mowers require high tip speeds for the hammer blades to pulverize vegetation. Our gearboxes typically employ a 1:3 ratio, tripling the input speed (e.g., from 540 RPM to 1620 RPM at the output shaft) before the pulley system further accelerates the rotor to the optimal 2000+ RPM.
The “Belt-Fuse” Architecture
Why doesn’t the gearbox drive the rotor directly?
Opmerking van de ingenieur: Direct drive systems are too rigid. In the rocky terrains of Scotland or the hidden debris of Dutch roadside verges, a direct strike on a boulder would transmit shockwaves instantly back to the gears, shearing teeth. By using a gearbox-to-pulley design, the V-belts act as a mechanical fuse. They slip momentarily under shock loads, protecting the expensive internal gearing of the EVER-POWER unit.
[UK & Netherlands] Regional Terrain & Regulatory Landscape
🇬🇧 United Kingdom Focus
Terrain Challenge: The “flint and limestone” geology of the Cotswolds and the rugged uplands of Wales present a unique “Shock Load” profile. Flail mowers here face constant micro-impacts.
Compliance (UKCA): Post-Brexit, machinery parts must align with the Voorschriften inzake de veiligheid van de levering van machines 2008. Our gearboxes come with full technical files to support your UKCA marking process, specifically regarding the guarding of the input shaft (PTO guard interface standard ISO 5674).
Key Season: “Hedge Cutting Season” (Sep-Feb). The ban on cutting hedgerows during nesting season means an intense window of operation in autumn. Downtime during September is not an option.
🇳🇱 Netherlands Focus
Terrain Challenge: The Polders (reclaimed land) have heavy, clay-rich soil. During the wet autumns, “mud wrapping” around the rotor increases torque drag significantly. The gearbox must sustain higher continuous torque loads without overheating.
Compliance (CE): Strict adherence to Machinerichtlijn 2006/42/EC. We certify that our noise emissions and thermal surface temperatures meet EU safety thresholds.
Key Season: Tulip Bulb & Potato Haulm Topping (July-August). Pulverizing tough plant biomass requires high rotor inertia.
Comparative Advantage: Why OEMs Switch
| Functie | EVER-POWER (Pro Series) | Standard Market Alternative (e.g., Comer*) | Generiek budgetmerk |
|---|---|---|---|
| Afdichtingstechnologie | Double-Lip Viton® (200°C) | Enkele NBR | Standaard rubber |
| Tandwielmateriaal | 20CrMnTiH (gecarburiseerd) | 20CrMnTi | 45# staal |
| Warmteafvoer | +30% Surface Fin Area | Standaardhuisvesting | Smooth Housing (Poor cooling) |
| Garantie | 24 maanden | 12 maanden | 6 maanden |
*Disclaimer: All manufacturer names (e.g., Comer, Bondioli, Bush Hog, Kuhn, Maschio) are used for reference purposes only. EVER-POWER is an independent manufacturer of replacement parts and is not affiliated with the OEM brands mentioned.
Van het bureau van de hoofdingenieur
Subject: The “Thermal Runaway” Problem in Enclosed Flail Mowers
“When we redesigned the LF-205 compatible series, we noticed a recurring failure pattern in units returned from Southern France and East Anglia. The failure wasn’t mechanical fatigue; it was thermal. Flail mowers operate in a cloud of dust and chopped debris. This debris blankets the gearbox housing, insulating it like a winter coat.
Standard gearboxes rely on air convection. When covered in mulch, the internal temperature spikes to 130°C, cooking the NBR seals until they become brittle and crack.
Onze oplossing: We didn’t just add fins. We changed the housing profile to create ‘turbulent air channels’ that utilize the airflow from the nearby belt pulleys to self-clean the gearbox surface. We also switched to Viton seals as standard, which remain elastic up to 200°C. It’s a small change on paper, but in the field, it doubles the lifespan.”
Veldverslagen: Wereldwijde oplossingen
Case 1: The Bulb Fields of North Holland 🇳🇱
The Pain: “We shred tulip bulbs post-harvest. The sand paste wears out output shaft seals in weeks.”
De oplossing: EVER-POWER implemented a ‘Cassette Seal’ system with an external mud-slinger shield.
Resultaat: Seal replacement interval extended from 3 weeks to 2 seasons.
Case 2: Roadside Maintenance in Yorkshire 🇬🇧
The Pain: “Hitting hidden milestones in verges was snapping our PTO shafts and cracking gearbox casings.”
De oplossing: Upgraded to our Ductile Iron (QT450) housing which offers 40% higher tensile strength than standard Grey Iron.
Resultaat: Zero housing fractures recorded in the 2024 contracting season.

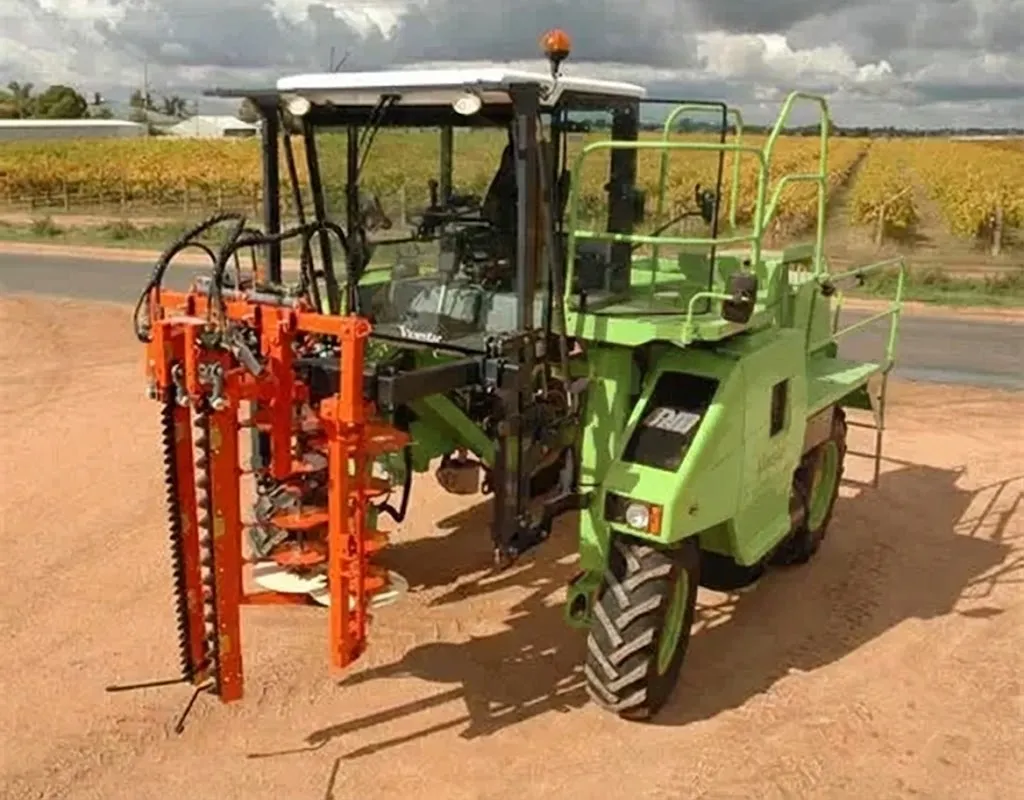

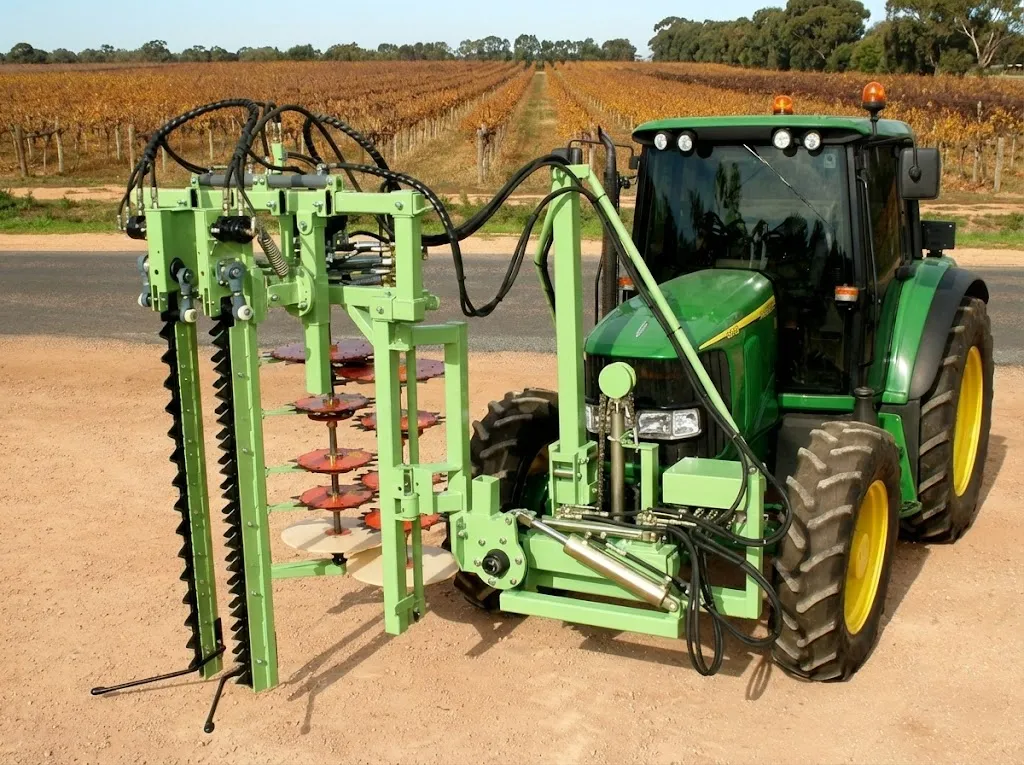

Case 3: Vineyard Pruning in Bordeaux 🇫🇷
The Pain: Compact tractors (narrow gauge) needed a high-power gearbox that fit in tight rows.
De oplossing: A custom compact housing design with recessed bolt holes to prevent snagging on vines.
Resultaat: Perfect fit for narrow-track viticulture tractors.
Case 4: Biogas Maize Stubble, Bavaria 🇩🇪
The Pain: Continuous 24-hour operation during harvest caused oil foaming and leaks.
De oplossing: Introduction of a high-flow filtered breather plug to manage internal pressure changes rapidly.
Resultaat: Oil leakage eliminated; maintenance costs dropped by 15%.
Case 5: Orchard Management, Masovia 🇵🇱
The Pain: Noise complaints from operators working near residential areas.
De oplossing: Precision-ground gears (DIN Class 6) replaced the standard shaved gears.
Resultaat: 6dB reduction in operating noise.
When to Replace? 4 Early Warning Signs
- 1. The “Whine” of Death: A high-pitched whining sound under load indicates bearing pitting or gear mesh misalignment.
- 2. The “Delayed Engagement”: If the PTO spins but the mower takes a second to “catch,” your internal free-wheel clutch sprags are worn. This is a safety hazard.
- 3. Excessive Heat (>90°C): If water sizzles when splashed on the housing, the oil has broken down or bearings are seizing.
- 4. Metal Flakes in Oil: During your oil change, if the oil looks like metallic paint (glittery), catastrophic gear failure is imminent.
Frequently Asked Questions (B2B Procurement)
What is the lead time for 50+ units delivered to the UK post-Brexit?
We have streamlined our logistics. For standard models, we can ship via DDP (Delivered Duty Paid) to Felixstowe or Southampton within 35 days. We handle the customs clearance and VAT documentation.
Can this gearbox replace the Bondioli & Pavesi unit on a Maschio mower?
Yes. Our ‘EP-Match’ series is dimensionally interchangeable with standard Bondioli versnellingsbakken used on Maschio flail mowers. Please provide the mounting bolt pattern (usually 4-bolt square) and shaft diameter to confirm.
Do you supply the matching pulleys and V-belts?
Absolutely. We offer a “One-Stop Drivetrain” kit. You can order the gearbox, the SPB section pulleys, and the matching V-belts in a single shipment to ensure perfect ratio compatibility.
How do I check the oil level on the LF-205 style gearbox?
There is a level plug on the side of the casing. With the machine on level ground, remove the plug. Oil should just trickle out. If not, top up with SAE 80W-90 via the top breather plug.
Is the free-wheel clutch serviceable or do I replace the whole box?
The free-wheel is an internal component. While it can be serviced by a skilled technician using a press, it is often more cost-effective in labor terms to replace the versnellingsbak unit if the clutch sprags have failed, as debris often damages other bearings.
What happens if I run a 540 RPM gearbox at 1000 RPM?
Do not do this. You will over-speed the rotor, causing dangerous vibration that can disintegrate the flail hammers. It will also overheat the bearings rapidly. Always match the PTO speed to the gearbox rating.
Do you offer custom ratios for specialized crop shredding?
Yes, our R&D team can customize gear sets. For example, for hemp fiber processing, we have designed high-torque, lower-speed ratios. MOQ applies for custom gear sets.
Where can I find the serial number for ordering spares?
Every EVER-POWER unit has a riveted metal plate on the top housing. Please send a photo of this plate to our support team for instant part identification.
Complete Your Drivetrain System
Groothoek aftakasassen
Essential for flail mowers to allow turning while operating. Includes CE-compliant yellow safety guarding.
Forged Flail Hammers
Heavy-duty 1.2kg forged steel hammers for crushing rock and wood. Compatible with all major rotor types.
V-Belt Pulley Sets
Balanced cast iron pulleys (SPB/SPC profiles) with taper lock bushings for easy installation.
Hydraulic Side-Shift
Complete hydraulic cylinder kits to add side-shift functionality to your flail mower frames.
We offer the full agricultural ecosystem. From the PTO yoke to the flail hammer, source it all from EVER-POWER.
Klaar om uw wagenpark te upgraden?
Don’t let a gearbox failure stop your harvest. Contact our engineering team today for a quote on our high-performance Flail Mower Gearboxes.
