Engineered for the demanding clay soils of the Polders. High-torque transmission solutions for professional agricultural machinery.

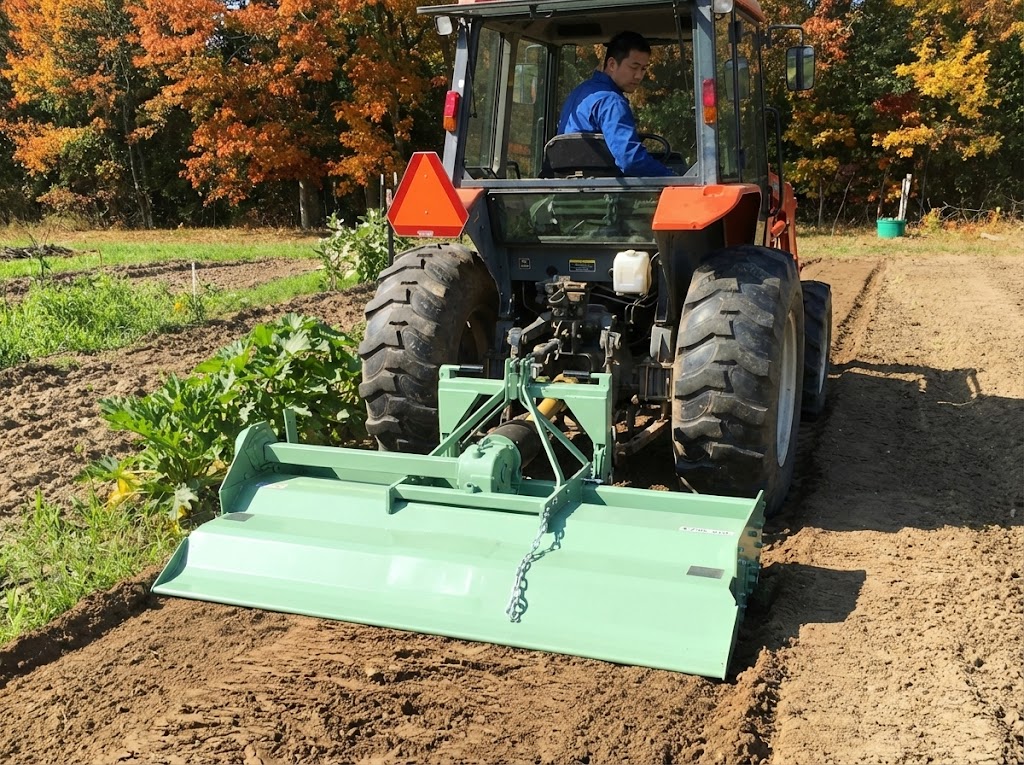

1. Engineering Excellence for Dutch Soil Conditions
The agricultural landscape of the Netherlands is characterized by its unique soil compositions, ranging from the heavy marine clay (zeoklei) of Groningen and Zeeland to the abrasive sandy soils of Brabant. For rotary tillers (freesmachines) operating in these intensive environments, the gearbox is not merely a transmission component—it is the critical heartbeat of the drivetrain. EVER-POWER has developed a specialized range of Central Rotary Tiller Gearboxes designed to withstand the high-torque requirements of deep soil preparation and potato ridge formation.
Our gearboxes serve as the primary power distribution unit, converting the high-speed input from the tractor’s PTO into the high-torque, transverse rotation required by the tiller blade shaft. Positioned at the center of the machine frame, the EVER-POWER central gearbox ensures balanced power delivery, minimizing vibration and maximizing the efficiency of soil pulverization. This is essential for preparing seedbeds for high-value crops like tulips, onions, and seed potatoes, where soil structure uniformity is paramount.
Unlike standard off-the-shelf units, our designs address the specific challenges of the “Loonbedrijf” (contracting) sector: continuous operation during short weather windows, resistance to shock loads from hidden stones in reclaimed land, and absolute seal integrity to prevent oil contamination in environmentally sensitive polder zones.
2. Technical Specifications Overview
Below represents the engineering capabilities of our central gearbox series, customizable to fit specific OEM requirements.
| Parameter | Specificatiebereik / Standaard |
|---|---|
| Maximaal ingangsvermogen (pk) | 40 HP – 180 HP (Dependent on model) |
| Ingangskoppelcapaciteit | Tot 2800 Nm |
| Standard Ratio Options | 1.46:1, 1.92:1, 2.33:1, 3.00:1 |
| Ingangssnelheid (PTO) | 540 RPM / 1000 RPM (Dual speed ready) |
| Ingaande as spiebaan | 1 3/8″ Z6 (DIN 9611) or Z21 |
| Profiel van de uitgaande as | Round Ø50mm with keyway / Hexagonal 42mm |
| Behuizingsmateriaal | Nodulair gietijzer QT450-10 (GGG40) |
| Tandwielmateriaal | 20CrMnTi Alloy Steel (Case Hardened) |
| Tandwieltype | Gleason Spiral Bevel Gears (Lapped/Ground) |
| Oppervlaktehardheid (tandwielen) | HRC 58-62 (Carburized layer 0.8-1.2mm) |
| Asmateriaal | 40CrNiMoA (gehard en getemperd) |
| Lagerclassificatie (L10 levensduur) | > 5.000 uur onder zware belasting |
| Oliekeerring Merk | SKF / NOK / TTO (Double lip Viton) |
| Bedrijfstemperatuur | -20°C tot +110°C |
| Smeertype | Spatsmering (oliebad) |
| Oliecapaciteit | 2.5 L – 4.5 L (Model specific) |
| Aanbevolen oliekwaliteit | SAE 85W-90 / SAE 80W-140 (GL-5) |
| Ademhalingstype | Pressure-relief vent with filter |
| Verf/Coating | Epoxy Primer + Polyurethane Topcoat (120μm) |
| Geluidsniveau | < 82 dB(A) at full load |
| Trillingslimiet | < 4,5 mm/s (RMS) |
| Montage-interface | 4-Bolt / 6-Bolt Flange Pattern |
| Direction of Rotation | Bi-directional capability (optional) |
| Efficiëntie | ≥ 96% per stadium |
| Gewicht (droog) | 35 kg – 85 kg |
| Ontwerpstandaard | ISO 6336 / AGMA 2001 |
| Bescherming tegen indringing | IP65 (Dust tight, water jet resistant) |
| Instelling van de terugslag | 0.15 – 0.25 mm (Adjustable with shims) |
| Garantieperiode | 24 maanden |
| Additional Feature | Through-shaft for rear PTO output option |

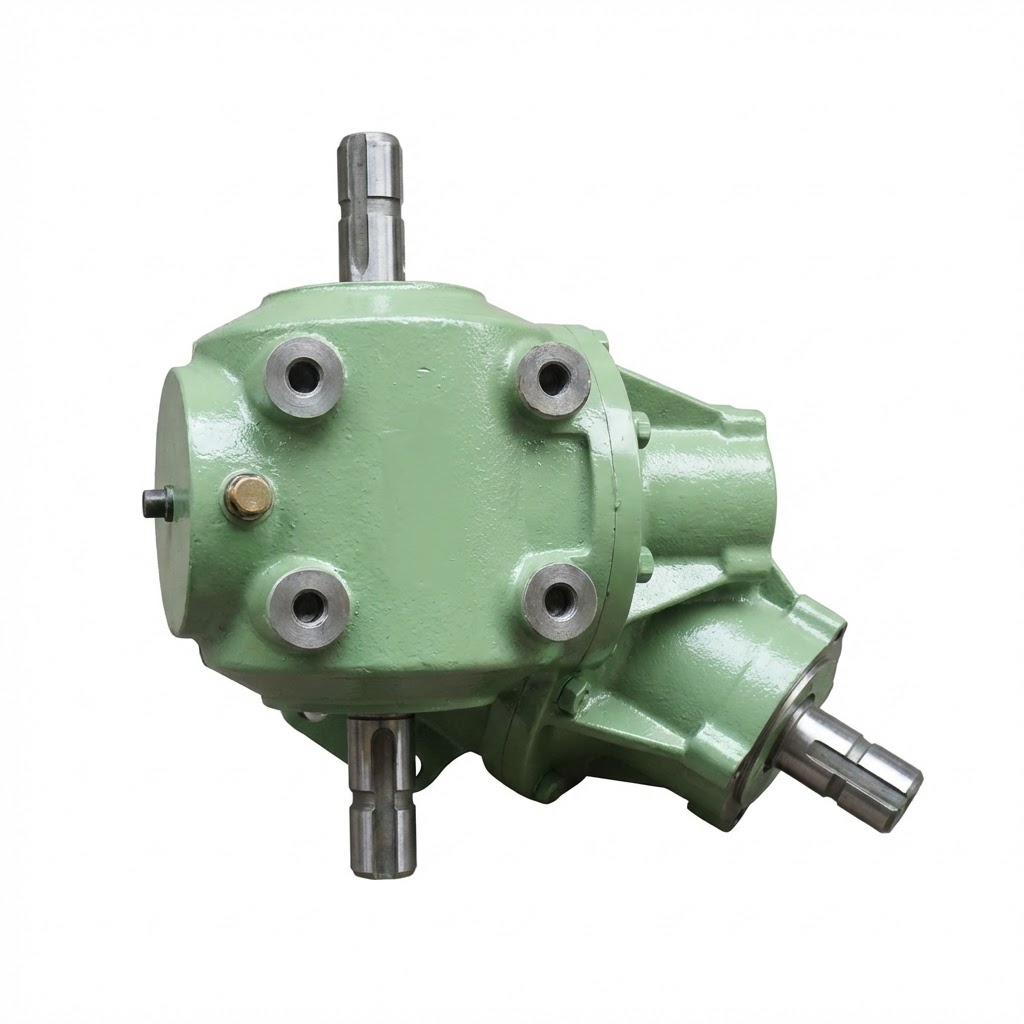

3. Anatomy of a Heavy-Duty Central Gearbox
Structural Integrity (The Housing)
The gearbox housing is casting from high-grade QT450-10 Nodulair gietijzer. This material choice is deliberate to combat the specific vibrational frequencies generated by rotor blades hitting hard clay. Unlike grey iron, ductile iron possesses nodular graphite structures that arrest crack propagation, ensuring the housing can survive sudden shock loads if the tiller strikes a buried rock or old drainage pipe—a common hazard in Dutch reclaimed lands.
The Power Core (Spiral Bevel Gears)
At the heart of the system lies a matched set of Gleason spiral bevel gears. We utilize 20CrMnTiH steel, carburized to a depth of 1.2mm. The spiral tooth profile ensures that more than one tooth is in contact at any given time (high contact ratio). This results in a transmission that is significantly quieter and smoother than straight bevel gears, reducing operator fatigue during long shifts in the tractor cab.
Input & Output Dynamics
De Input Shaft is designed with a standard 1 3/8″ 6-spline interface to universally mate with PTO shafts from major tractor brands like John Deere, New Holland, and Fendt. The Intermediate Shaft transfers power laterally to the side drive (gear or chain). A critical feature is the shim-adjustable bearing preload, allowing maintenance teams to compensate for wear over years of service, extending the unit’s total lifecycle.
Thermisch beheer
Extended operation leads to heat. Our housings feature computer-optimized ribbing (fins) that increase surface area by 30%, enhancing passive convective cooling. This keeps the oil temperature within the optimal range (below 85°C), preventing oil oxidation and seal degradation even during the hot summer harvest preparation.
4. Combating the Dutch “Zware Klei” (Heavy Clay)
Farming in the Netherlands presents a unique set of metallurgical challenges. The polder soils, particularly in Flevoland and Zeeland, are notoriously heavy and sticky. When a 3-meter wide rotary tiller engages with this wet, plasticine-like soil, the torque demand is not constant; it spikes violently.
De EVER-POWER oplossing:
- ✓ Shock Load Absorption: Our gears are case-hardened for surface wear resistance but retain a tough, ductile core. This allows the gear teeth to absorb the momentary elastic deformation caused by clay resistance without snapping.
- ✓ Triple-Lip Sealing: The fine, abrasive silica found in sandy silt (zavel) is a seal killer. We employ cassette-type seals with an internal grease labyrinth, effectively creating a barrier against liquid mud and dust ingress.
- ✓ High-Viscosity Lubrication Path: Internal oil channels are designed to ensure upper bearings are lubricated instantly upon startup, crucial for cold mornings in the Low Countries.
5. Marktvergelijking: Waarom EVER-POWER?
| Functie | Generic Imports | EVER-POWER PRO-serie | Impact on Farming |
|---|---|---|---|
| Tandwielmateriaal | Standaard 45# staal | 20CrMnTi-legering (gecarburiseerd) | 3x Longer fatigue life under heavy load. |
| Lektesten | Willekeurige steekproeven | 100% Vacuum & Pressure Test | Zero soil contamination (critical for eco-compliance). |
| Warmteafvoer | Standard Smooth Casting | Enlarged Fins (+30% Area) | Operates 15°C cooler, extending oil life. |
*Disclaimer: Competitor data based on average specifications of standard aftermarket generic parts. Actual performance may vary.
6. Universele compatibiliteit
Our engineering team has reverse-engineered the mounting interfaces of the most popular rotary tillers in Europe to ensure a “drop-in” replacement experience. EVER-POWER gearboxes are dimensionally compatible with many models from:
Kuhn
Celli
Breviglieri
Howard
Disclaimer: Original Equipment Manufacturer (OEM) names and part numbers are listed for reference purposes only. EVER-POWER is an independent manufacturer and is not affiliated with these brands.
7. Regional Focus: Serving the United Kingdom Market
While our central hub serves continental Europe, EVER-POWER has established a strong logistical presence to support the UK agricultural sector. From the wheat fields of East Anglia to the dairy pastures of the West Country, British farmers demand equipment that meets strict safety and durability standards.
UK Regulatory Compliance
Our gearboxes are fully compliant with the Voorschriften inzake de veiligheid van de levering van machines 2008. We provide full documentation including:
- CE & UKCA Marking: Certifying conformity with health, safety, and environmental protection standards.
- PUWER Assessment Support: Assisting farm managers in meeting the Provision and Use of Work Equipment Regulations 1998 requirements.
De aftakasverbinding
In the UK market, safety is paramount. A gearbox is useless without a reliable power transmission link. EVER-POWER emphasizes the critical relationship between the gearbox and the PTO-as. We supply fully guarded PTO shafts that meet BS EN ISO 5674 standards. A mismatched PTO shaft can cause catastrophic gearbox bearing failure due to axial thrust. We recommend pairing our gearboxes with our heavy-duty wide-angle PTO shafts for seamless integration.
8. Engineer’s Notebook: Evolution of Design
“Five years ago, we noticed a pattern of failures coming from the Flevoland region. The issue wasn’t torque overload, but rather ‘micro-pitting’ on the gear teeth caused by microscopic vibrations when tilling compacted subsoil. My team went back to the drawing board. We didn’t just thicken the gears; we changed the metallurgy. We introduced a ‘Controlled Shot Peening’ process to the gear roots. This induces residual compressive stress, effectively immunizing the gear against fatigue cracks. The result? Our warranty claims from that region dropped to near zero in the subsequent season. It’s not just about adding metal; it’s about understanding the physics of the soil.”
— Hendrik V., Lead Transmission Engineer, EVER-POWER
9. Field Reports: Success Across Borders
Case 1: The Tulip Fields of North Holland
Probleem: Saltwater mist corrosion causing input shaft seal failure.
Oplossing: EVER-POWER deployed a custom unit with stainless steel sleeves on the sealing surface and a marine-grade paint finish.
Feedback: “The gearbox has survived three winters near the coast without a spot of rust. The seals are still tight.” — Jan, Flower Grower
Case 2: Contract Farming in Gelderland
Probleem: Overheating during 16-hour continuous shifts preparing maize fields.
Oplossing: Retrofitted our ‘High-Fin’ housing design with 30% more cooling area.
Feedback: “Oil temps dropped by 12 degrees. We don’t have to stop for cool-down breaks anymore.” — Pieter, Contractor
Case 3: Heavy Clay in Essex, UK
Probleem: Snapped input shafts due to hidden flint stones.
Oplossing: Upgrade to 20CrMnTiH shafts with a shear-bolt torque limiter integration.
Feedback: “Saved us thousands. Now the bolt breaks, not the gearbox.” — Arthur, Farm Manager
Maak uw aandrijflijn compleet
EVER-POWER is your one-stop shop for agricultural transmission components. We ensure seamless compatibility between all parts of your drivetrain.
PTO-assen
Standard and Wide-Angle shafts with lemon, triangular, or star profiles. Fully CE guarded.
Landbouwketens
Heavy-duty roller chains for side-drive rotary tillers. Corrosion-resistant coatings available.
Slipkoppelingen
Essential torque limiters to protect your new gearbox from overload damage.
Customization: Our Core Competency
We understand that one size does not fit all. At our manufacturing facility, we offer rapid prototyping for custom versnellingsbak solutions.
- Ratio Modification: Need a faster rotor speed for finer soil? We can machine custom gear sets.
- Shaft Extensions: Extended input shafts for hydraulic pump mounting.
- Housing Reinforcement: Extra ribbing for extreme-duty applications.
Veelgestelde vragen (B2B)
What is the typical lead time for a batch of 50 rotary tiller gearboxes to the Netherlands?
For standard models, we can ship within 15 days. Custom configurations typically require 35-45 days for manufacturing and testing. We offer expedited air freight for urgent sample orders.
How does EVER-POWER ensure the gearbox seals withstand abrasive sandy soil conditions?
We utilize a double-lip Viton seal combined with an external dust shield. This “labyrinth” design physically prevents sand particles from reaching the primary oil seal, significantly extending lifespan in sandy environments.
Can you provide gearboxes compatible with older Kuhn or Maschio tiller models?
Yes, we have an extensive database of legacy agricultural machinery specifications. We can match mounting patterns and shaft splines to provide a modern replacement for discontinued OEM parts.
What is the recommended oil change interval for intensive contract farming use?
For the first use, change oil after 50 hours (break-in period). Subsequently, we recommend changing the gear oil every 500 hours or annually, whichever comes first, to maintain optimal viscosity.
Do you offer volume discounts for agricultural machinery distributors in the UK?
Absolutely. We have a tiered pricing structure for B2B distributors. Please contact our sales team with your estimated annual volume for a tailored quote.
Are your gearboxes shipped with oil or dry?
For safety and shipping regulations, units are shipped dry. However, each unit is tagged with a clear warning label and specifications for the required oil type (usually SAE 90).
What happens if I pair this gearbox with a tractor exceeding the HP rating?
Exceeding the rated HP can lead to accelerated gear wear or catastrophic shaft failure. We strongly recommend using a slip clutch on the PTO-as as a safety fuse to protect the gearbox from torque spikes.
Where can I find the serial number for spare parts ordering?
Every EVER-POWER gearbox features a riveted metal nameplate on the housing. This plate contains the model number, ratio, and date of manufacture, which is essential for ordering the correct replacement parts.
Klaar om uw landbouwaandrijving te upgraden?
Join hundreds of satisfied European manufacturers and farmers who trust EVER-POWER for reliability and performance.
