HC-966109 Lawn Mower Series Gearbox — High-Torque Drive Solution for British Farming
Engineered for demanding field conditions across the UK, the HC-966109 agricultural gearbox delivers reliable 60 HP power transfer at 540 rpm PTO input — trusted by crop machinery operators from Yorkshire to Devon.
What Makes the HC-966109 the Right Agricultural Gearbox for UK Machinery?
The HC-966109 agricultural gearbox is purpose-built for heavy-duty power transmission in tractor-mounted and self-propelled farm equipment operating under British field conditions. Whether you are running a rotary slasher across a wet Yorkshire hillside, driving a fertiliser spreader on clay-heavy Lincolnshire soil, or powering a forage harvester in the Scottish Lowlands, this gearbox is engineered to absorb shock loading while sustaining smooth, continuous torque delivery. The combination of a 1:1.46 and 1:1.93 ratio selection, paired with a 60 HP power rating, makes it suitable across a wide spectrum of implement types without over-specifying the drivetrain — a practical advantage for UK agricultural contractors who manage diverse fleets.
The input/output configuration — 1 3/8 Z6/1 3/4 Z20 with an Optic ax1 S-Taper spline — is fully compatible with standard 540 rpm PTO shafts found on most modern tractors from 60 HP upwards, eliminating costly adapter requirements. At just 29 kg net weight, the HC-966109 agricultural gearbox remains practical for single-operator installation and replacement in the field, reducing downtime during peak harvest windows when every hour counts on UK farms.
तकनीकी निर्देश
| पैरामीटर |
Value |
| वस्तु |
HC-966109 |
| अनुपात |
1:1.46 / 1:1.93 |
| दाँत |
13/19 / 14/27 |
| मॉड्यूल |
7.0 / 5.5 |
| Power (HP) |
60 |
| इनपुट श्रेणी निर्धारण |
540 rpm |
| इनपुट/आउटपुट विवरण |
1 3/8 Z6/1 3/4 Z20 Optic ax1 STaper spline |
| Weight (N.W) |
29 kg |

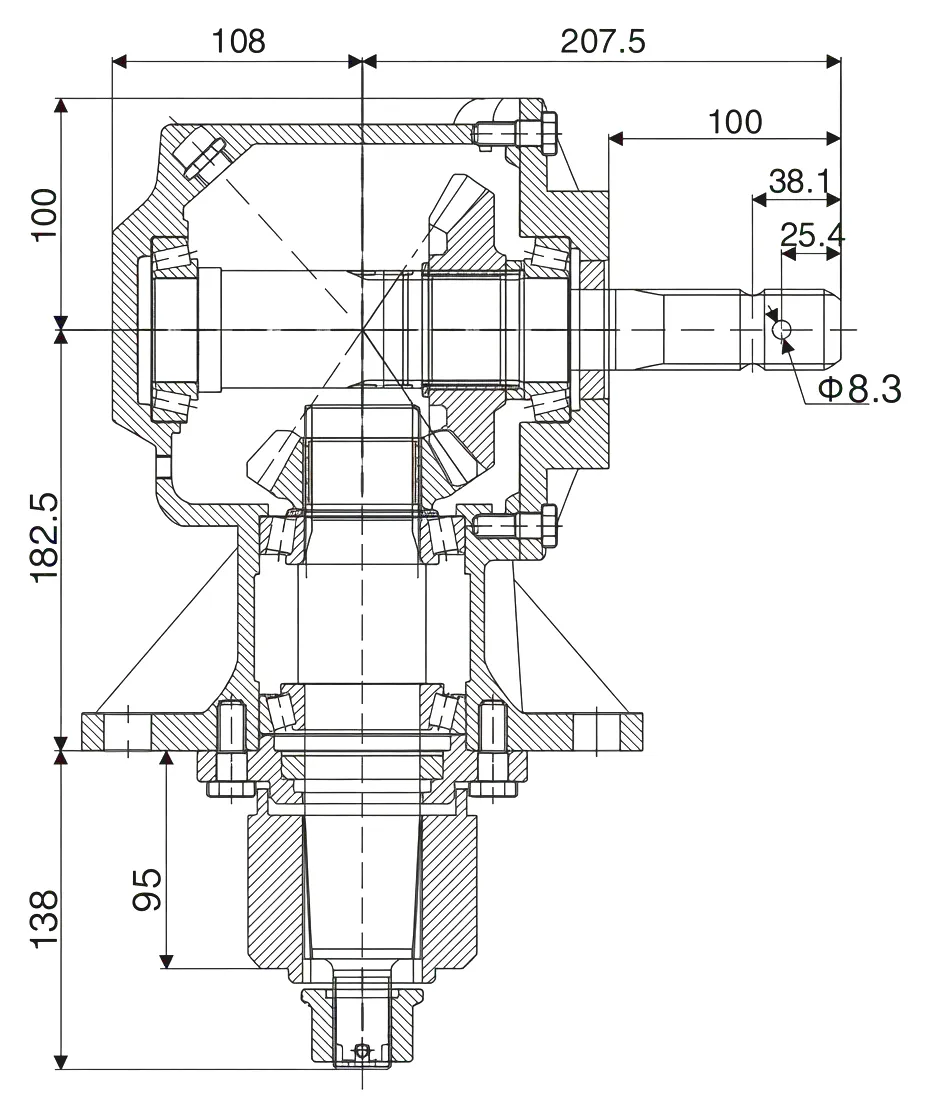

Technical Drawing
Materials, Construction & Working Principle
⚙
Alloy Steel Gearing
The drive gears are precision-cut from case-hardened alloy steel with carburised tooth flanks, achieving surface hardness of 58–62 HRC. This ensures reliable performance under the high-impact loading typical in UK farm machinery — such as stone strikes during rotary cultivation or sudden engagement on PTO-driven implements.
🛠
नमनीय लोहे का आवरण
The housing is cast from GGG50 ductile iron, providing excellent vibration damping while keeping overall weight to 29 kg. It is machined to tight tolerances on all mating faces, and the sealed bearing bores accept standard metric bearings — making the agricultural gearbox serviceable with common workshop tools at any UK farm machinery dealer.
📈
Power Flow Principle
Input torque from the tractor PTO (540 rpm, 1 3/8 Z6 spline) passes through the primary helical gear pair and divides into two selectable output ratios — 1:1.46 or 1:1.93 — allowing operators to match output speed to the implement requirement without changing the entire gearbox assembly, a genuine time-saving advantage during seasonal transitions on mixed arable and livestock farms.
Key Product Advantages
Years of field testing and customer feedback across multiple continents have shaped the HC-966109 into a mature, refined product. For UK agricultural machinery importers, OEM integrators, and farm equipment dealers, the following advantages translate directly into lower total cost of ownership and fewer service calls during the critical spring and autumn work periods.
✅
Dual Ratio Selection
Two selectable gear ratios (1:1.46 & 1:1.93) within one compact unit deliver the flexibility needed for multi-implement farm operations.
✅
Standard PTO Compatibility
1 3/8 Z6 and 1 3/4 Z20 S-Taper spline outputs match the ISO 500 PTO standard, fitting most tractors sold in the UK market without modification.
✅
Compact & Lightweight
At 29 kg, the agricultural gearbox is light enough for practical field installation by one person, saving on labour costs for dealers and contractors alike.
✅
Case-Hardened Gear Teeth
Carburised tooth surfaces resist pitting and wear under sustained heavy load, extending service intervals and reducing replacement frequency in commercial farming operations.
✅
Low Operating Noise
Ground and lapped helical gears produce measurably lower noise output than spur alternatives — important where operators work close to livestock or in noise-sensitive rural environments.
✅
Custom Configurations Available
Housing colour, shaft configuration, breather position, and mounting face can be adapted for OEM requirements — details are covered in the factory section below.
Application Scenarios for Agricultural Gearboxes
The HC-966109 agricultural gearbox is designed for deployment across a broad range of ground-engaging and crop-processing machinery. The following applications represent the most common use cases seen in the UK and export markets, but the unit’s dual-ratio flexibility and PTO compatibility make it adaptable to many further requirements. Specific drive configurations for specialised harvesting equipment — particularly high-capacity sugarcane harvesters operating in tropical export markets supplied from the UK — can be found via the resources below.
🌿
Rotary Slashers & Flail Mowers
High-inertia cutting heads demand a robust agricultural gearbox rated for sustained blade-impact loading.
🌿
Fertiliser Spreaders
Consistent output speed at varied PTO loads ensures uniform spread patterns across large UK arable acreages.
🌾
Hay & Forage Balers
Dual-ratio capability matches bale chamber demands — slow for knotting phases, faster for feed-in — in round and square baler designs.
🍎
Rotary Tillers
Heavy clay soils across the English Midlands demand precisely that combination of torque capacity and compact mounting geometry this agricultural gearbox provides.
🔗 Related Agricultural Gearbox Applications
Customer Success: HC-966109 in the Field
केस स्टडी
Yorkshire Arable Contractor Reduces Gearbox Replacements by 60%
A mid-scale arable contractor based in the East Riding of Yorkshire operates a fleet of nine rotary slashers used for roadside verge management and post-harvest residue chopping across approximately 4,200 ha annually. Prior to adopting the HC-966109 agricultural gearbox, the operation was averaging 2.4 gearbox replacements per unit per season — largely due to shaft fatigue failures at the output coupling under repeated high-torque engagement shocks on uneven ground.
Following a trial of three HC-966109 units in the 2023 season — sourced via a UK agricultural machinery importer partnered with Ever-Power Group — the contractor tracked zero shaft or housing failures across the full operating period. The 1:1.93 ratio was selected as standard across the fleet, providing the lower output speed needed for the heavier residue conditions encountered on maize ground, while the S-Taper spline connection eliminated the slippage failures seen on previous keyed-shaft designs.
“We replaced our entire fleet specification with the HC-966109 for the 2024 season. The difference in reliability has been significant — we have not had a single gearbox-related downtime event across nine machines and three operators.”
— Operations Manager, East Riding Contracting Ltd (anonymised per client request)
★★★★★
“We supply agricultural machinery spares across the East Midlands and stocked the HC-966109 agricultural gearbox for the first time this spring. Twelve units sold within six weeks, with no returns. The dual-ratio feature is exactly what our customers ask for when upgrading older implements.”
James T.
Agricultural Parts Dealer, Nottinghamshire, UK
★★★★★
“We integrated the HC-966109 into our compact forage harvester series as a standard component in early 2024. The S-Taper spline connection is machined to a tighter tolerance than our previous supplier, and the agricultural gearbox runs noticeably cooler under extended high-load use.”
Stefan K.
OEM Engineer, Farm Machinery Manufacturer, Bavaria, Germany
★★★★★
“Price competitiveness from this supplier is strong for the spec level offered. We sourced 40 HC-966109 units for a contract supply deal to a Scottish estate management company. Delivery was on schedule and documentation for UK customs clearance was provided without any chasing.”
Alan M.
Import Manager, Agricultural Equipment Distributor, Edinburgh, UK
Manufacturing Facility & Custom Engineering
Ever-Power Group operates a purpose-built agricultural gearbox manufacturing facility covering more than 28,000 m2 in Hangzhou, equipped with CNC gear hobbing centres, CMM quality control rooms, shot-blasting and powder-coating lines, and a dedicated fatigue test cell. The facility holds ISO 9001:2015 certification and has supplied agricultural drive components to OEM customers across the UK, Germany, Australia, and the Americas.
🔧 Custom Configuration Capabilities
Modified shaft lengths & diameters to suit OEM mounting frames
Alternative gear ratio combinations for non-standard PTO speeds
Custom RAL powder-coat colours for brand-matched machine builds
Repositioned breather valves & drain plugs for vertical installations
OEM-branded labelling, documentation, and country-of-origin certificates for UK import
Minimum order quantities as low as 10 units for trial procurement
📧 कीमत प्राप्त करें
अक्सर पूछे जाने वाले प्रश्नों
+
Which tractor brands sold in the UK are compatible with the HC-966109 agricultural gearbox input shaft specification?
The HC-966109 uses a 1 3/8 Z6 six-spline input connection running at 540 rpm — the ISO 500-standard PTO configuration fitted as standard to tractors from John Deere, New Holland, Case IH, Massey Ferguson, Fendt, Claas, and Valtra sold in the UK. For tractors with a 1 3/4 Z20 twenty-spline shaft, the alternative output configuration on this agricultural gearbox is already accommodated. We recommend confirming your specific model year PTO specification with your dealer before ordering.
+
What is the typical price range and minimum order quantity for the HC-966109 agricultural gearbox when sourcing for UK farm machinery distributors?
Pricing depends on final configuration, shipping terms (FOB Hangzhou or CIF UK port), and order volume. The minimum order quantity for standard-spec HC-966109 agricultural gearboxes is 10 units for trial procurement. For distributors placing orders of 50 units or more, volume pricing tiers and extended warranty terms are available. Please send your enquiry to
[email protected] with your required quantity, delivery port, and any custom requirements for a detailed quotation.
+
How does the dual gear ratio on the HC-966109 benefit UK arable farmers operating rotary tillers and slashers on heavy clay soils?
The 1:1.93 ratio delivers a lower, more torque-rich output speed well suited to breaking up wet, compacted clay typical across the English Midlands and East Anglia. The 1:1.46 ratio is more appropriate for lighter, sandy soils or secondary tillage work where higher rotor speed is beneficial. Because both ratios are within the same agricultural gearbox housing, operators do not need to carry a second unit or make time-consuming implement changes during mixed soil-condition days.
+
Where can I find a reliable agricultural gearbox supplier in the UK that offers custom configurations for OEM farm equipment manufacturers?
Ever-Power Group supplies UK OEM farm equipment manufacturers and machinery importers directly from our Hangzhou production facility, with documented quality control records, CE documentation support, and UK Customs Tariff classification assistance available on request. Custom configurations — including modified shaft lengths, alternative ratios, and branded packaging — are available for orders meeting minimum thresholds. UK customers can reach the sales team directly at
[email protected].
+
When should I consider replacing the agricultural gearbox on my UK farm implement, and what are the warning signs of gearbox wear?
Common indicators that an agricultural gearbox requires inspection or replacement include: increased operating noise (grinding, whining, or knocking sounds at rated PTO speed), oil leakage at shaft seals or housing joints, elevated housing temperature after short operating periods, vibration transmitted back through the PTO shaft, and visible play in the output shaft under manual load. On UK farms where seasonal workload peaks are intense, we recommend inspecting oil level and seal condition at the start of each field season and after every 200 operating hours. The HC-966109 is designed for straightforward field service.
Which tractor brands sold in the UK are compatible with the HC-966109 agricultural gearbox input shaft specification?
The HC-966109 uses a 1 3/8 Z6 input connection at 540 rpm, compatible with John Deere, New Holland, Case IH, Massey Ferguson, Fendt, Claas, and Valtra tractors sold in the UK. An alternative 1 3/4 Z20 output is also accommodated.
What is the typical price range and minimum order quantity for the HC-966109 agricultural gearbox when sourcing for UK farm machinery distributors?
Minimum order is 10 units for standard spec. Volume pricing applies from 50 units. Contact
[email protected] for a detailed quote.
