Precision Bevel Gear Set

The 15/29 tooth profile and Module 4.0 standard produce tight mesh tolerances that minimise vibration and noise even under peak field loads. This reduces wear on both the gearbox internals and any attached implement linkage, extending the effective service life well beyond entry-level alternatives.

Universal PTO Compatibility

With a 1 3/8 Z6 six-spline input shaft rated at 540 rpm, the HC-RC30-193 interfaces directly with standard Category 1 and Category 2 PTO shafts used on tractors from 30 to 100 HP — covering virtually every machine in the UK’s working tractor fleet. No adapter plates or custom machining required.

Cast Iron Housing — Field Proven

The housing is produced from high-grade grey cast iron with precision-bored bearing seats, giving the gearbox excellent resistance to torsional shock. Field tests in heavy clay and stony ground conditions in East Anglia and the Scottish Borders confirm that the casing maintains dimensional stability across wide seasonal temperature swings.

IP65-Rated Sealing System

Agricultural environments expose drivetrain components to soil particles, moisture, fertiliser residues, and crop debris. The HC-RC30-193 uses double-lip shaft seals and a fully gasket-sealed housing to provide IP65-equivalent dust and water resistance, keeping lubricant in and contaminants firmly out throughout the full harvesting campaign.

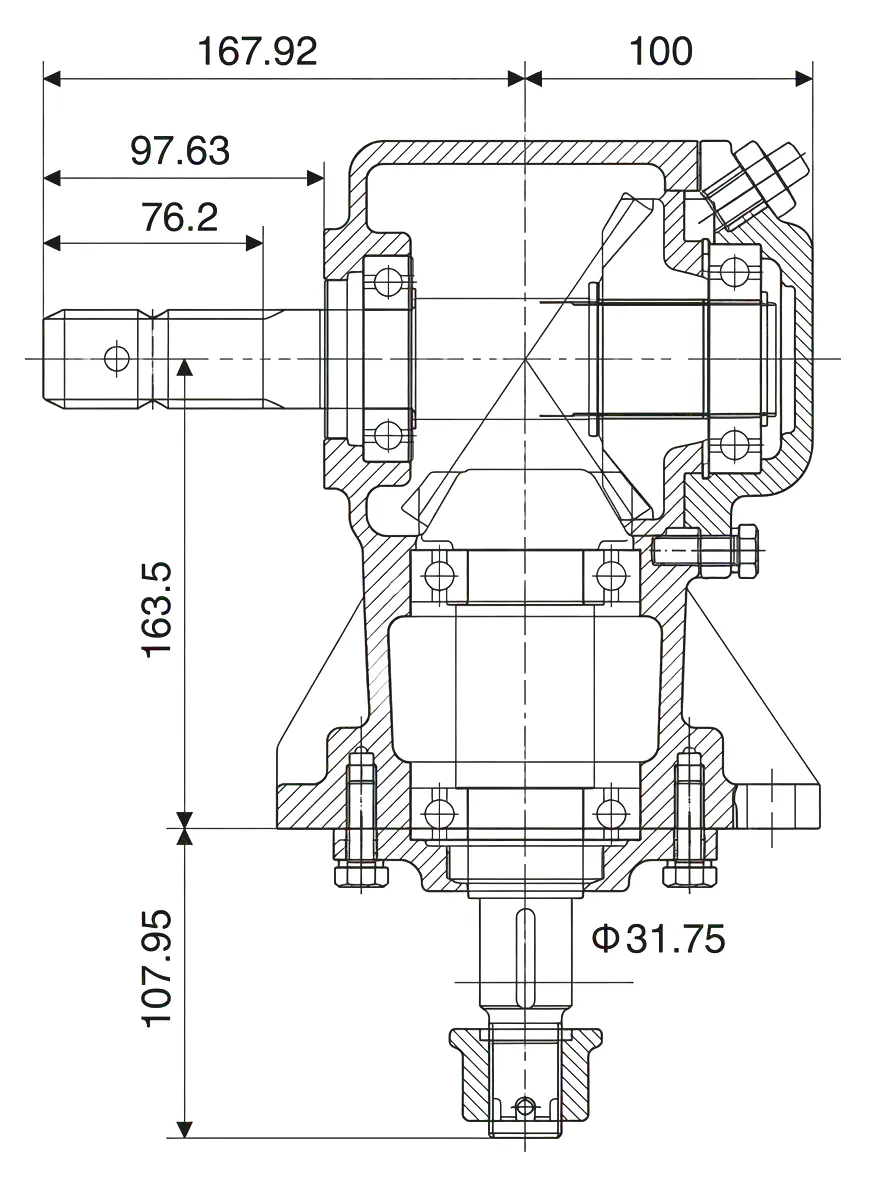

Engineering Drawing

Dimensional drawing for reference — custom configurations available on request

Operating Principle

The HC-RC30-193 employs a single-stage spiral bevel gear arrangement, redirecting rotational input from a tractor PTO shaft by exactly 90 degrees. The 1:1.93 speed-increasing ratio means that at the standard UK PTO speed of 540 rpm, the output shaft turns at approximately 1,042 rpm — well matched to cleaning star and chopper rotor assemblies on root crop harvesters. Spiral bevel teeth are ground-finished to DIN 6 accuracy, distributing load progressively across the face width rather than concentrating it at a single contact point, which is why field service intervals on this model consistently exceed industry averages.

Materials Used

Gear blanks are machined from 20CrMnTi case-hardening alloy steel, carburised to a surface hardness of 58–62 HRC while maintaining a tough, ductile core. The housing is produced from GG25 grey cast iron with ribbed external geometry for enhanced heat dissipation during prolonged continuous running. Bearings are sourced from tier-one European suppliers meeting ISO 492 tolerances. The oil-bath lubrication system uses SAE 90 gear oil with a sealed fill-and-drain arrangement, enabling clean scheduled oil changes without removing the unit from the implement frame.

“We’re a Scottish upland farm running a mixed hay and silage operation. The HC-RC30-193 on our tedder’s main drive has been absolutely fault-free through two full seasons. Weight is sensible, fitting was straightforward, and the output shaft alignment was spot-on straight out of the box.”

Callum Robertson · Robertson Family Farm, Perthshire, Scotland

★★★★★

“As an OEM supplier of root crop handling equipment to cooperative farms in the Netherlands and Belgium, we trialled the HC-RC30-193 as a direct replacement for a German-sourced bevel gearbox. Lead times were faster, unit pricing was competitive, and dimensional accuracy met our drawing tolerances without any rework. We’ve now specified it into 35 new machines.”

Pieter van den Berg · VdB Agricultural Equipment BV, Netherlands

★★★★★
