HC-55 Lawn Mower Series Gearbox — 50HP Right-Angle Drive for UK Farming Operations
Purpose-engineered for high-demand tillage, harvesting and crop processing applications across the United Kingdom, the HC-55 delivers robust 1:1.6 ratio power transmission with a 540 rpm PTO-compatible input — built to last in British field conditions.
What Makes the HC-55 the Right Choice for British Farms?
Product Overview

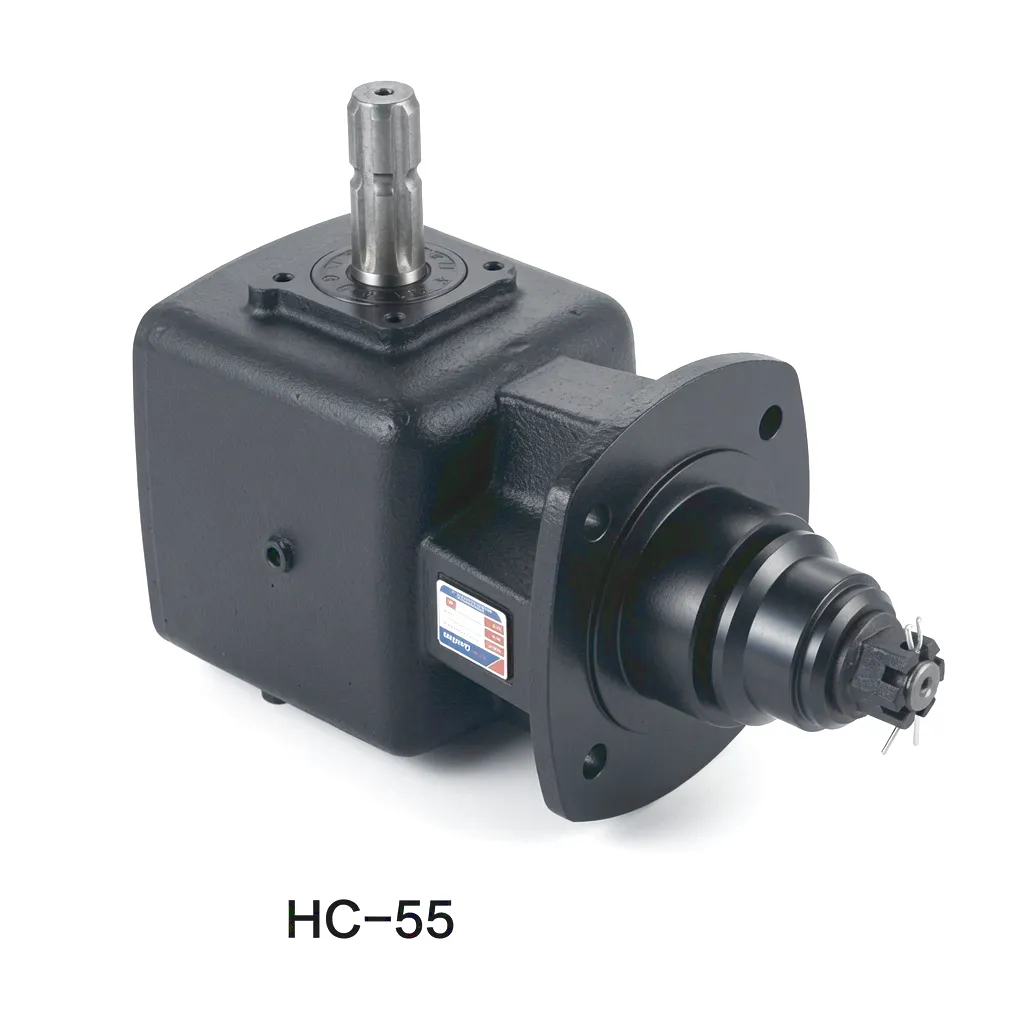

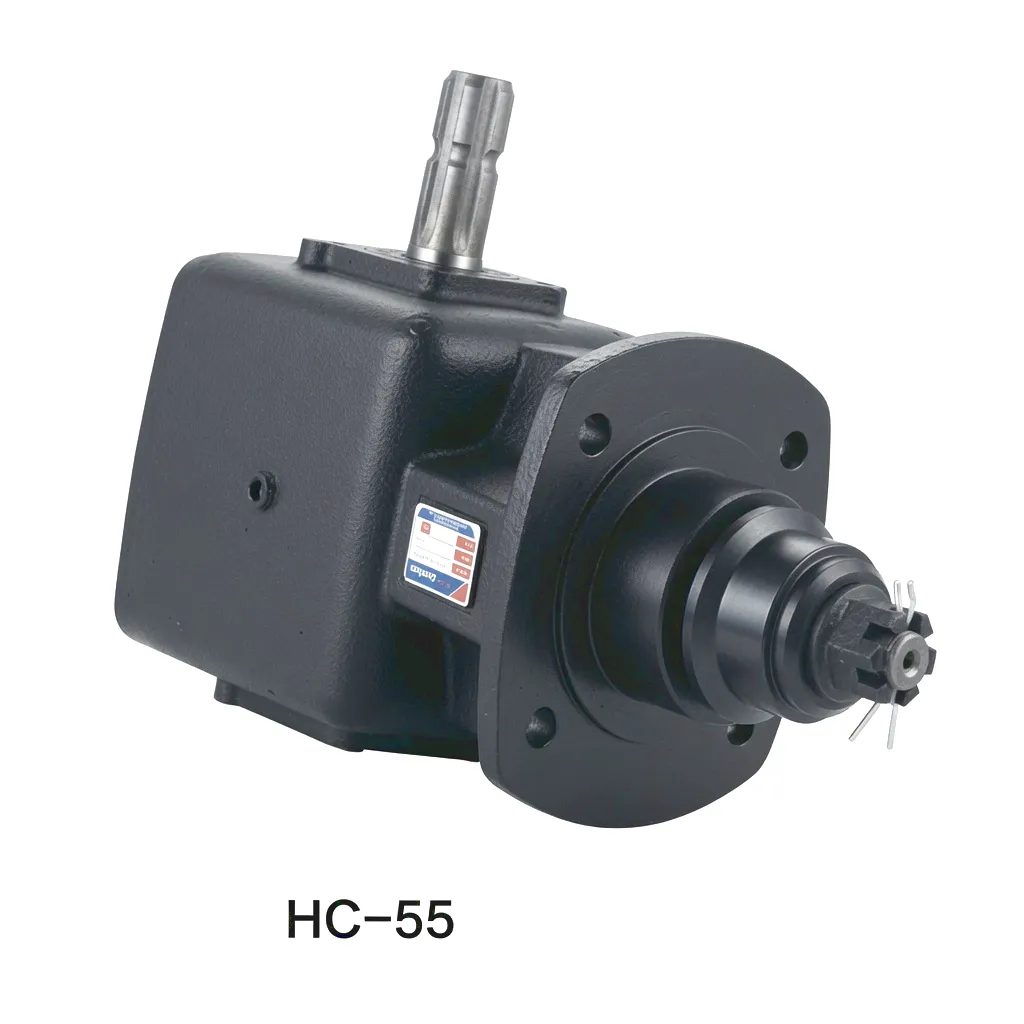

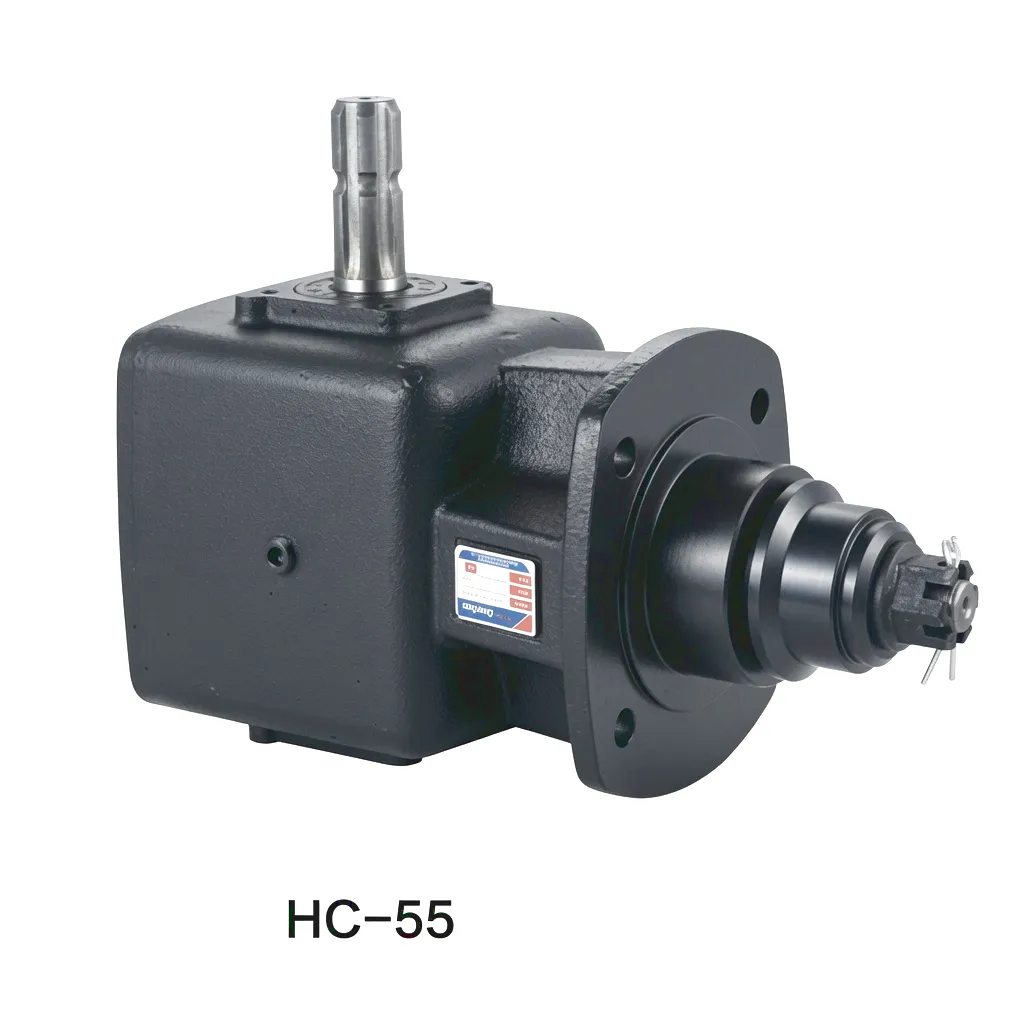

The HC-55 agricultural gearbox is a compact yet exceptionally capable right-angle drive unit, engineered for the rigours of British arable and mixed farming environments. With a gear ratio of 1:1.6, a 15/24 tooth configuration and a module rating of 6.0, it transmits up to 50 horsepower from a standard 540 rpm PTO input with outstanding mechanical efficiency. The cone-base aequilate spline shaft (1 3/8 Z6) ensures direct, low-backlash coupling to tractor power take-off systems common across UK machinery fleets — from compact utility tractors on smallholdings in Yorkshire to large-scale combinable crop operations in East Anglia. At a net weight of just 28.7 kg, the HC-55 strikes a balance between structural durability and ease of installation that many competing agricultural gearboxes in its power class simply cannot match. Whether driving rotary tillers, hedge cutters, spreading augers or beet harvester cleaning stars, this unit adapts to diverse seasonal workloads with minimal maintenance intervention, making it a commercially sensible investment for UK farm machinery dealers, OEM equipment builders and end-user farming businesses alike.
Manufactured to exacting dimensional tolerances, the HC-55 agricultural gearbox housing is produced from high-grade cast iron, providing the thermal mass and rigidity needed to sustain continuous-duty operation throughout long harvest shifts. Internal gear sets are manufactured from alloy steel with carburising and case-hardening treatment, ensuring tooth hardness profiles that resist pitting and wear even under sustained heavy-draft loads. The sealed bearing arrangement, combined with a precision-machined housing bore, keeps contaminants out of the lubrication circuit — critical in the muddy, high-moisture field conditions typical of UK autumn harvests. The result is an agricultural gearbox that not only performs reliably from day one but continues doing so across multiple seasons with only routine oil-level checks required.
Core Performance Advantages
Why UK Buyers Specify HC-55
Optimised 1:1.6 Ratio
The 1:1.6 gear ratio is purpose-selected for PTO-driven implements where modest output speed increase is required without compromising torque delivery — ideal for rotary harrows, flail mowers and cleaning star assemblies used widely across English, Scottish and Welsh farms.
Universal 1 3/8 Z6 Spline
The cone-base aequilate spline shaft conforms to the globally recognised 1 3/8 Z6 standard, ensuring direct fitment to virtually every modern tractor PTO shaft in the UK market without adapters or modification — reducing installation time on farm significantly.
Heavy-Duty Cast Iron Housing
Precision-cast grey iron housing provides vibration damping, thermal stability and long-term dimensional integrity under impact loading — qualities that matter especially in UK sugar beet harvesting and root crop operations where field conditions are often abrasive and unpredictable.
Compact 28.7 kg Build
At just 28.7 kg net weight, the HC-55 agricultural gearbox fits comfortably within the weight budgets of mid-category implements, simplifying mounting design for UK OEM manufacturers and reducing implement balance adjustments for end-user farm machinery operators.
50HP Rated Capacity
With a 50HP power rating at 540 rpm, the HC-55 comfortably handles mid-range PTO implement demands without running close to its mechanical limits — extending service life, reducing heat build-up during extended duty cycles and minimising unscheduled downtime during critical harvest windows.
Case-Hardened Alloy Gears
Carburised and case-hardened alloy steel gears deliver surface hardness levels sufficient to resist abrasive wear, micro-pitting and scuffing — failure modes that commonly affect agricultural gearboxes used intensively across UK spring cereal drilling and autumn root harvesting campaigns.
तकनीकी निर्देश

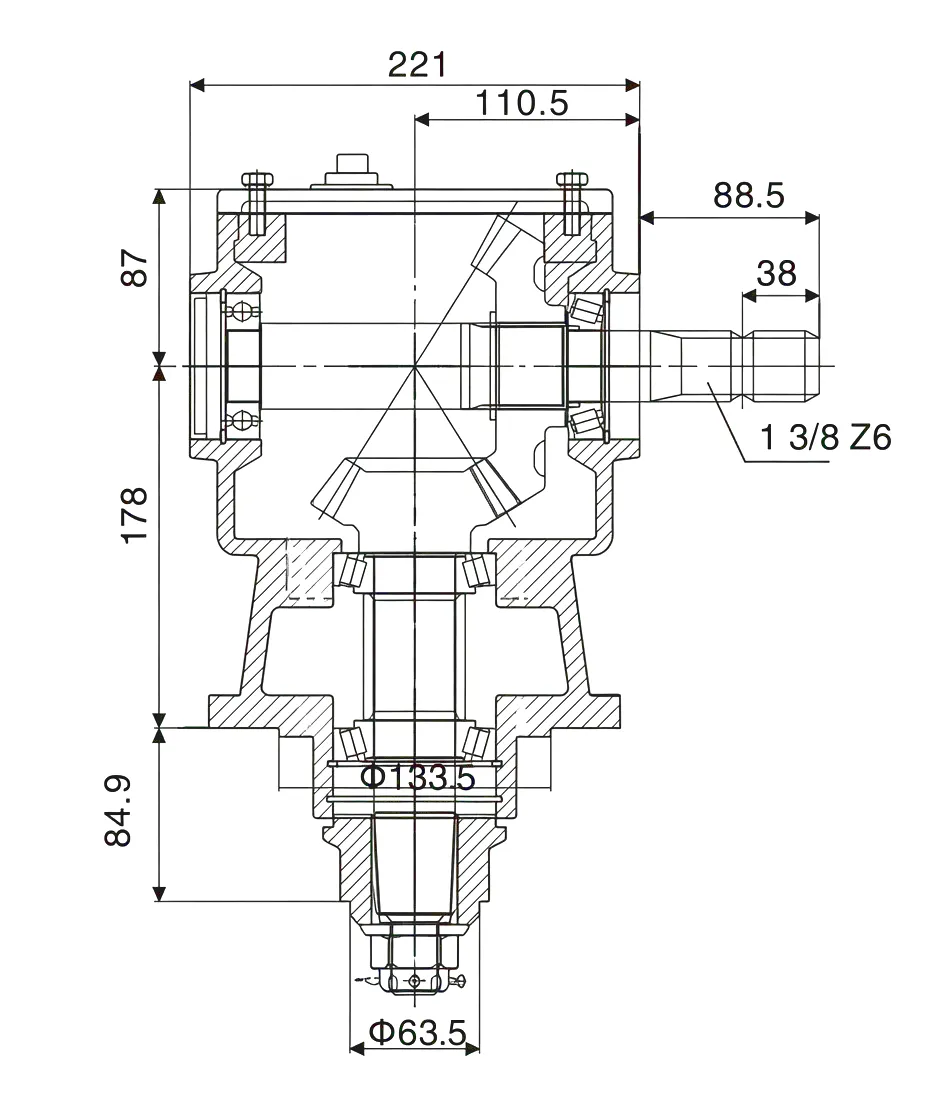

HC-55 Product Parameters
| पैरामीटर | विनिर्देश |
|---|---|
| वस्तु | HC-55 |
| अनुपात | 1:1.6 |
| दाँत | 15/24 |
| मॉड्यूल | 6.0 |
| Power (HP) | 50 |
| इनपुट श्रेणी निर्धारण | 540 rpm / 1 3/8 Z6 |
| इनपुट/आउटपुट विवरण | शंकु आधार समतुल्य स्प्लाइन शाफ्ट |
| Weight (N.W) | 28.7 kg |
How It Works: Principle, Materials & Field Scenarios
Engineering & Application Context
Working Principle
The HC-55 operates on a bevel gear right-angle transmission principle. Rotational input from the tractor’s 540 rpm PTO shaft enters via the 1 3/8 Z6 cone spline, engaging the 15-tooth drive bevel gear. This meshes with the 24-tooth driven bevel gear mounted on the output shaft, delivering a 1:1.6 speed increase with corresponding torque adjustment. The bevel meshing geometry ensures smooth, low-noise operation and high mechanical efficiency — typically 96–98% — which minimises heat generation during prolonged field operation. Bearing preload is factory-set to optimise gear mesh contact pattern and extend both bearing and gear fatigue life across the unit’s designed service interval.
Materials & Construction
The housing is manufactured from GG25 grey cast iron, providing the combination of stiffness, machinability and damping capacity essential for agricultural service. Gear blanks are produced from 20CrMnTi alloy steel, which is then carburised to achieve a case depth of 0.8–1.2 mm and surface hardness of HRC 58–62. Input and output shafts are produced from 40Cr medium-carbon alloy steel, induction-hardened at journal diameters. Taper roller bearings pre-loaded to manufacturer specification handle combined radial and axial loads. All oil seals are nitrile rubber, rated for continuous operation in EP gear oil environments standard for UK agricultural applications.
Typical Field Applications
- Sugar beet harvester cleaning star drives — Lincolnshire & East Anglia
- PTO-driven rotary cultivators and power harrows
- Flail mowers and verge mulchers for UK councils and estates
- Fertiliser spreader drive units
- Grain auger and elevator head drives
- Potato harvester web and separation drive systems
- Straw baler pickup and pre-chopper drive trains
- OEM implement gearbox replacement for UK machinery dealers
Application Deep Dives
Specialist Agricultural Gearbox Applications
चुकंदर काटने वाली मशीनों के लिए क्लीनिंग स्टार गियरबॉक्स: यूके के खेतों में जड़ वाली फसलों की रिकवरी दक्षता को फिर से परिभाषित करने वाला उच्च-टॉर्क समाधान
Explore how high-torque agricultural gearbox designs are transforming cleaning star performance on UK beet harvesters, reducing crop losses and increasing throughput in heavy clay soils.
Cleaning Star Gearbox for Beet Harvester: High-Torque Precision Drive for UK Sugar Beet Operations
A detailed look at precision drive requirements for UK sugar beet cleaning star systems, including torque demands, shaft compatibility and gearbox selection criteria for British conditions.
ग्राहक सफलता की कहानियाँ
Real Results from UK & European Agricultural Operations
Lincolnshire Sugar Beet Contractor — UK
Root Crop Harvesting | 2024 Autumn Campaign
A Lincolnshire-based agricultural contracting business operating six self-propelled beet harvesters was experiencing high replacement frequency on competitor-brand agricultural gearboxes fitted to cleaning star assemblies — typically one or two units per harvester per season. After trialling the HC-55 agricultural gearbox across two machines during the 2023 campaign, they standardised on the HC-55 across the full fleet for the 2024 harvest. The 50HP rating running at well under maximum capacity in their application produced significantly lower operating temperatures, and the alloy steel gear set showed no measurable wear after 480 combined field hours. Total gearbox replacement costs for the 2024 season dropped by over 60% compared to the previous year, and zero unscheduled downtime incidents were attributed to gearbox failure during the six-week campaign window.
60%+ reduction in gearbox replacement costs; zero harvest downtime from gearbox failure across 6-machine fleet.
“We’ve tried three different agricultural gearbox brands on our potato harvester elevator drives over the past decade. The HC-55 is the first unit that has comfortably made it through a full East Anglian season without needing attention. The 1:1.6 ratio suits our application perfectly and the spline fit was spot-on first time.”
“As an OEM machinery builder based in Yorkshire, sourcing reliable agricultural gearboxes at a competitive price is fundamental to our margins. The HC-55 landed with accurate dimensional spec, consistent quality across the batch and genuinely responsive technical support. We’ve since placed a standing order for quarterly delivery.”
“Our workshop stocks HC-55 gearboxes as a direct replacement unit for several popular beet harvester brands. The fitment accuracy is excellent and our customers are consistently reporting longer service intervals. The price point also makes it straightforward to recommend as a proactive replacement ahead of the season rather than waiting for a field failure.”
विनिर्माण क्षमता और अनुकूलित इंजीनियरिंग
Factory & Bespoke Solutions
Our manufacturing facility operates under ISO 9001 quality management processes across gear cutting, heat treatment, housing machining, assembly and final test. CNC gear hobbing and grinding centres allow us to maintain tooth profile accuracy within DIN 6 tolerances as standard, with DIN 5 available on request for high-precision applications. Coordinate measuring machines (CMM) verify critical housing dimensions on every production batch, ensuring dimensional interchangeability that UK OEM customers and agricultural machinery dealers depend on when planning service stock.
Beyond standard catalogue products, we provide a comprehensive agricultural gearbox customisation service that has made us a preferred supplier for UK implement manufacturers requiring bespoke drive solutions. Custom engineering services include: modified gear ratios from 1:1.1 through to 1:4.5 in bevel configurations; alternative shaft configurations including dual-output, offset or extended shaft variants; custom mounting flange patterns to OEM drawings; surface coating upgrades including hot-dip zinc plating or powder coat for enhanced corrosion resistance; and modified housing profiles for space-constrained implement designs. Minimum order quantities for custom variants are flexible, and our engineering team can work from customer-supplied drawings, 3D CAD models or even worn sample units.
Request a Custom Agricultural Gearbox Quotation
Share your application requirements, drawings or sample specifications with our technical team for a detailed proposal. UK enquiries typically receive a response within one working day.
अक्सर पूछे जाने वाले प्रश्नों
HC-55 Agricultural Gearbox — UK Buyer Queries
Specify the HC-55 for Your Next UK Agricultural Project
Technical datasheets, custom quotations and sample orders available — contact our team today.
